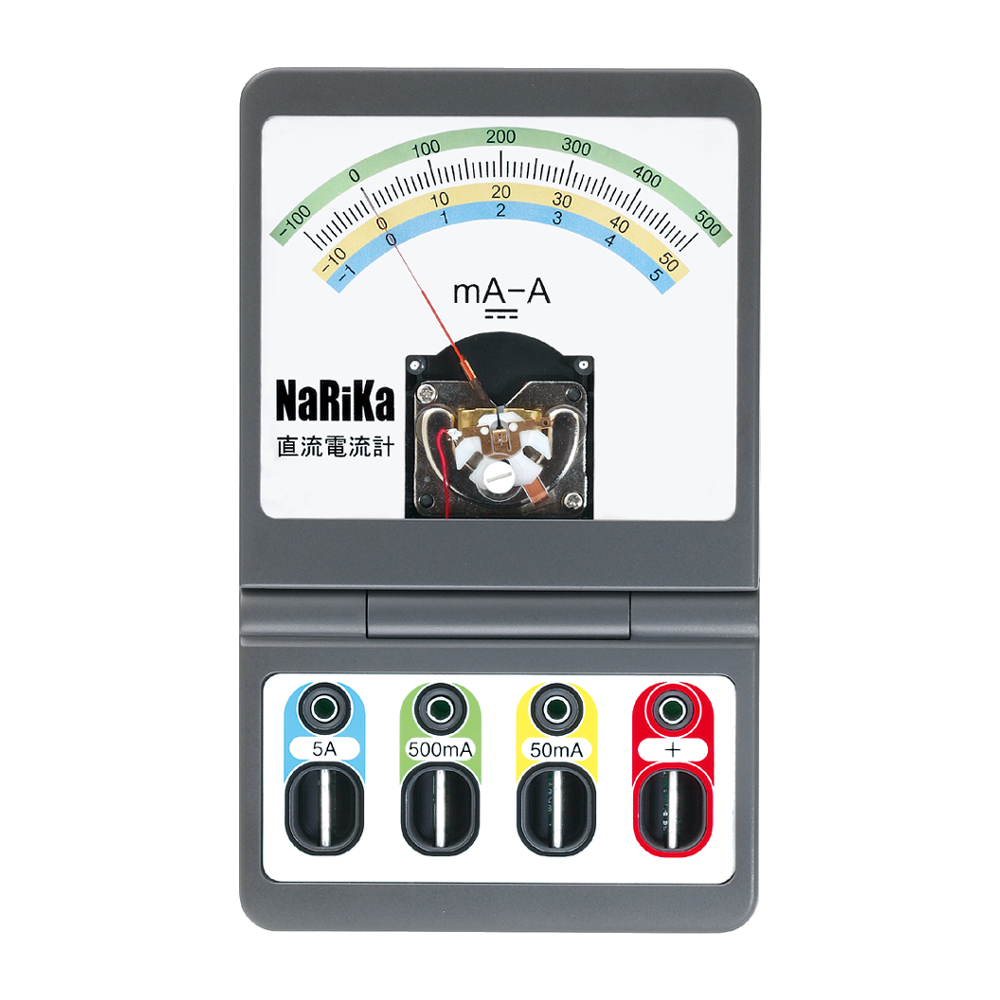

Flip-Up Ammeter 3-Range

Description

This new meter has a flip-up dial panel! The Narika  “FLIP-UP” electric meters have evolved to give the science classroom an ammeter that is easier to use and more compact for bench use as well as for storage.

Specification: JIS2.5 class equivalent
Meter: thin movable coil type, with zero adjustment
Measurement range: -10 to +50mA, -100 to +500mA, -1 to +5A (3 ranges)

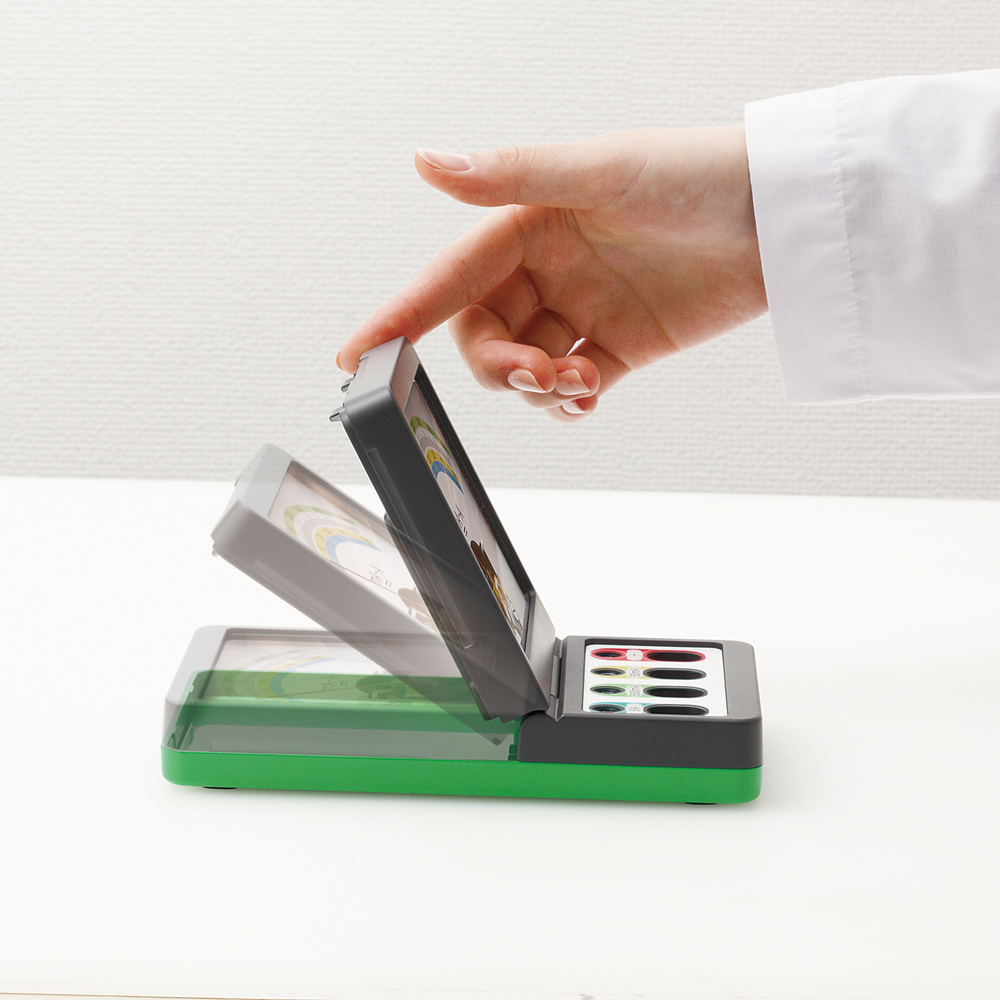

Panel: flip-up panel (0 to 90 degrees movable)
Size: 100 x 165 x 25 mm (slope angle 0 degrees)
Other: shunt protection, overload protection, flip-up panel, easy terminal, easy scale, ID color (green)
Material: (exterior) ABS, (meter part window) acrylic
