Hooke’s Law Springs Set/5 Non-Proportional

Description

Non-proportional Spring Set.

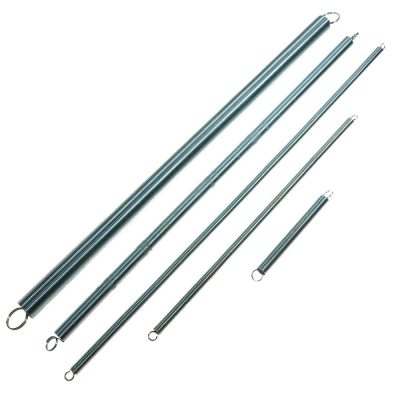

The IEC ‘Hooke’s Law Spring Set’ comes in two forms. This form has a set of 5 springs which are not relative to one another. Set of 5:
1x pce. Tension Spring, 6.2 x 320 mm. diam x length x 1.02 mm. diam.wire.
1x pce. Tension Spring, 6.2 x 210 mm. diam x length x 1.02 mm. diam.wire.
1x pce. Tension Spring, 7.8 x 70 mm. diam x length x 0.90 mm. diam.wire.
1x pce. Tension Spring, 9.2 x 300 mm. diam x length x 0.71 mm. diam.wire.
1x pce. Tension Spring, 14.5 x 300 mm. diam x length x 0.88 mm. diam.wire..
The normal Hooke’s Law experiments are performed relating mass and extension. See also Cat. 45SHP for set of 6x proportional springs.

Instruction Sheet
