Microscope Monocular Junior / Senior

$370.00 excl. GST

Cat. No. 44MMJAF Categories: ,

Description

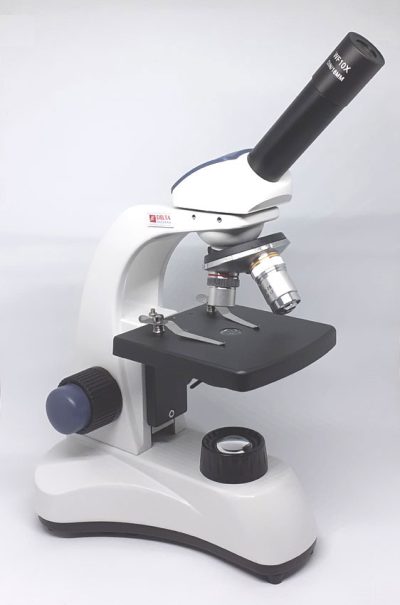

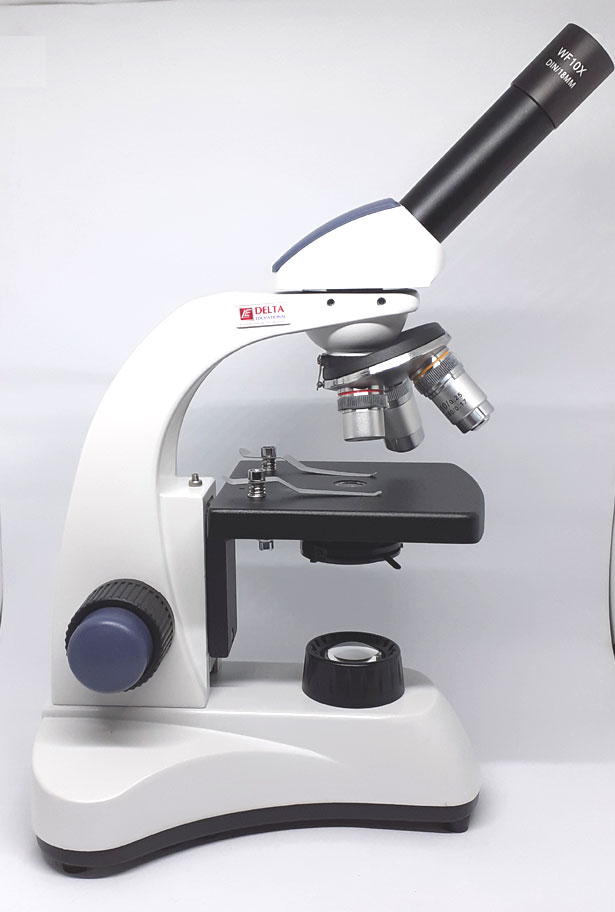

Monocular Microscope for teaching Junior and Senior microscopy. Slightly larger than the Junior Cat. 44MMJA2 and with an additional fine focus knob (to enhance detail at 400x magnification), built-in LED lamp and iris diaphragm.
Features:

  • NZ electrically certified
  • Monocular eyepiece tube with 45° inclined eyepiece tube
  • Revolving nosepiece for three objectives on ball bearings
  • 4x, 10x, 40x Achromat objectives
  • Wide field WF 10x/18 mm eyepiece
  • built-in long-life 1W LED with integrated power supply for top performance illumination
  • Lockable widefield 10x eyepiece with pointer
  • Plain Stage 123 x 119 mm with spring-loaded stage clips for easy slide placement

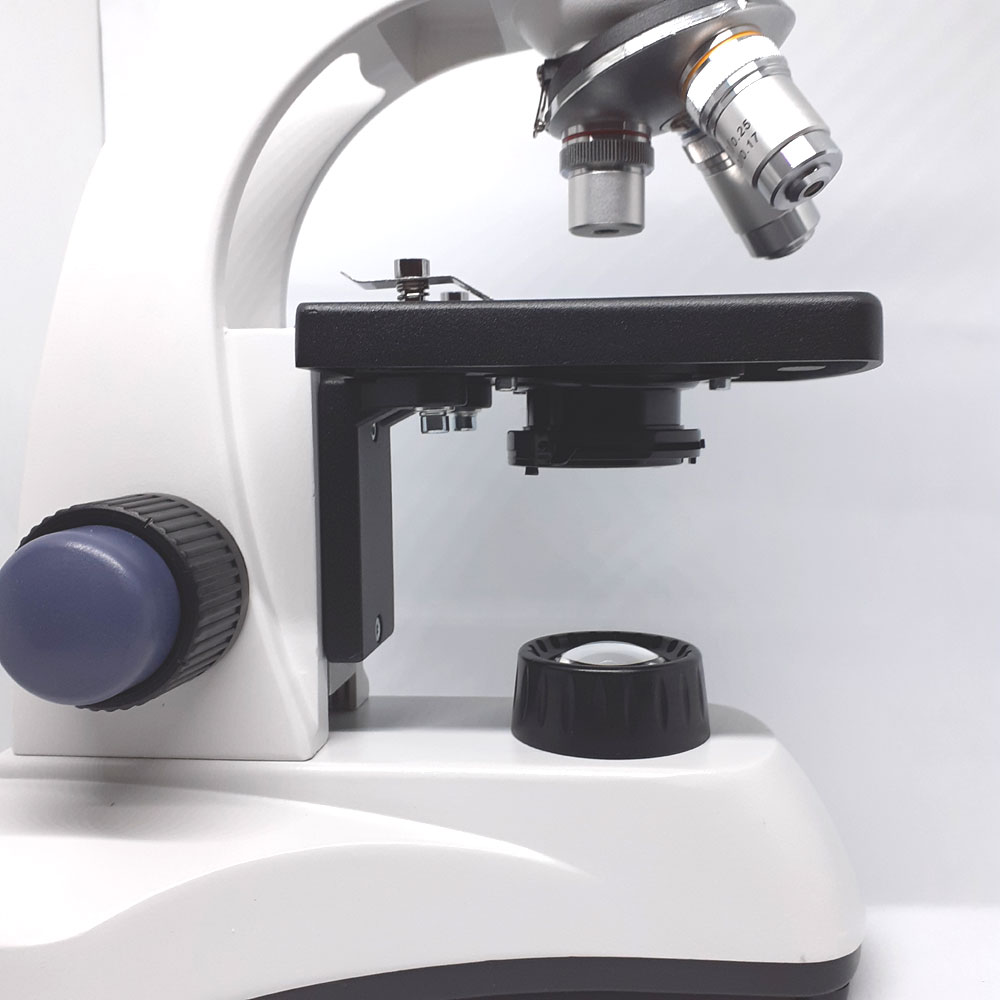

  • Iris diaphragm Condenser, N.A. 0.65
  • Daylight Blue filter
  • Rack and pinion stage
  • Bilateral coaxial coarse & fine focus knob; 200 graduations, 12.5 µm per graduation, 2.5 mm per rotation, total travel approximately 15 mm
  • Die-cast rugged metal housing
  • Adjustable stage stop (prevents damage to 40x lens)
  • 40X to 400X magnification

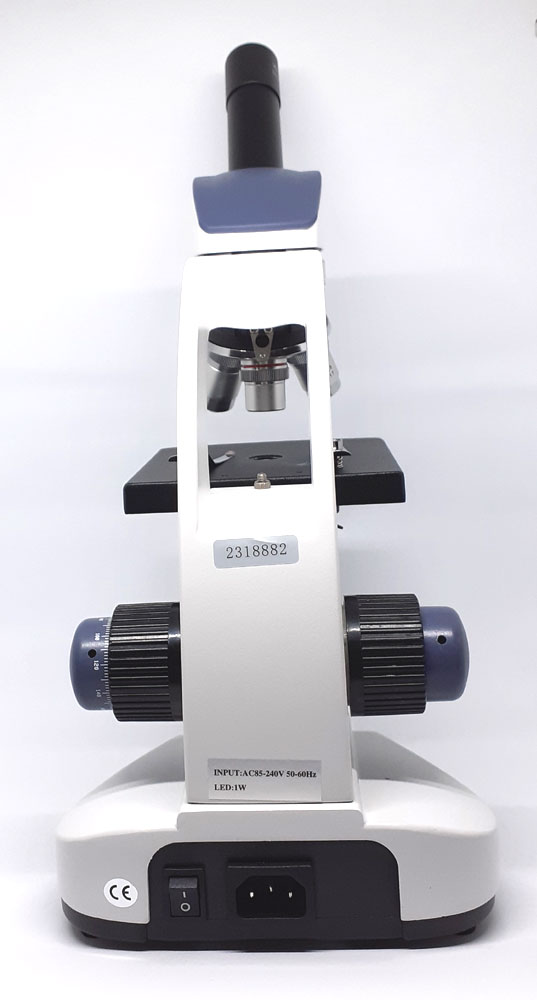

  • AC 240V, 50/60Hz
  • Dust cover, spare fuse, x2 Allen Keys
