Newton Meter Push-Pull Digital

$63.40 excl. GST

Cat. No. 45NM Categories: , Tag:

Description

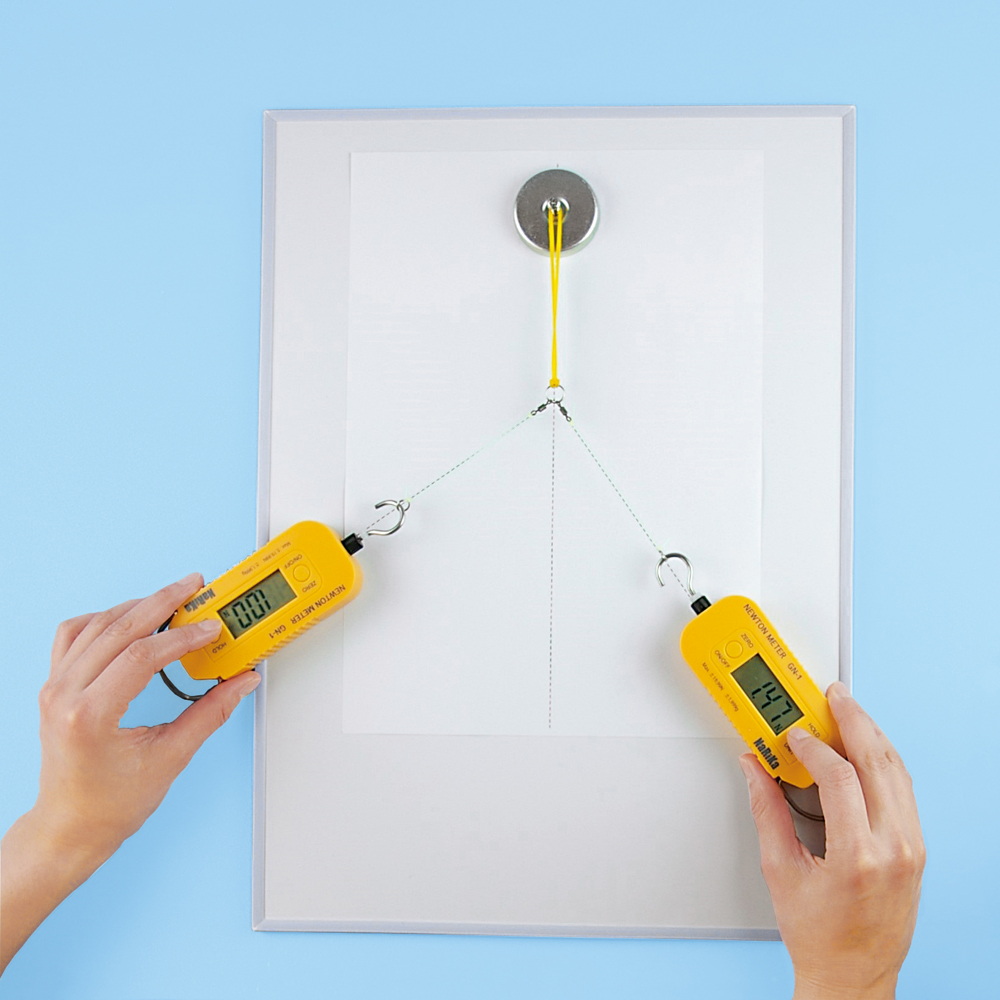

This digital Newton Meter operates in both Push and Pull modes and provides instant values. It has a Range of +-19.99N / +-1,999g and Resolution 0.01N / 1g making it ideal for experiments involving two or more force vectors.

ADVANTAGES:

  • It is possible to measure the value of the force more easily than a conventional spring scale.
  • Can be used for various experiments because it supports both push and pull (remove the hook to measure push force).
  • Wide range eliminates the need to choose several spring scales for an experiment.
  • digital display increases the reading speed.
  • Added convenience of a HOLD function.
  • ZERO point adjustment is one-touch.
  • Display switching of N and g included

Specifications
Measurement range: 0 to 19.99N (0 to .999 g) (force to pull when a hook is attached to the sensor part (+), pressing force (-)) when pressed with a rubber damper)
Display minimum unit: .01N (.1g)
Operating temperature range: 0 to 40 degrees C

Display: LCD
Size: 99 x 45 x 24 mm (not including protrusions)
Power: 2 AAA batteries (sold separately)
Function: unit display switching, low battery display (indicator flashing display), auto power off (from the power ON
Power OFF after 20 minutes) &  HOLD function

Watch the videos!
