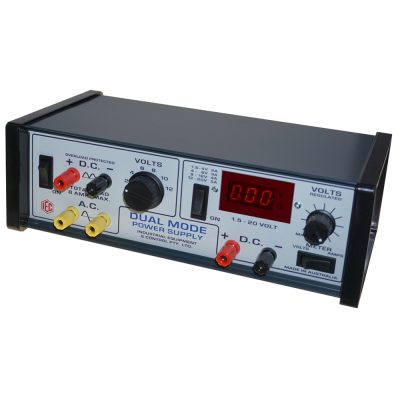

Power Supply – Dual Mode

Description

This very popular IEC “Dual Mode” Power Supply combines both AC/DC switched and DC smooth and regulated power outputs. It is suitable for both general lab work and electronic studies where a smooth and regulated output is necessary. Overload protection is automatic for both modes of operation. The meter on the regulated section can be switched to monitor either output volts or output amps. The switched section provides AC and DC at 2, 4, 6, 8, 10 and 12V at 8A and the regulated section provides 1.3V to 20V.DC. at 5A reducing to 2A at the lower voltages.

Instruction Sheet
