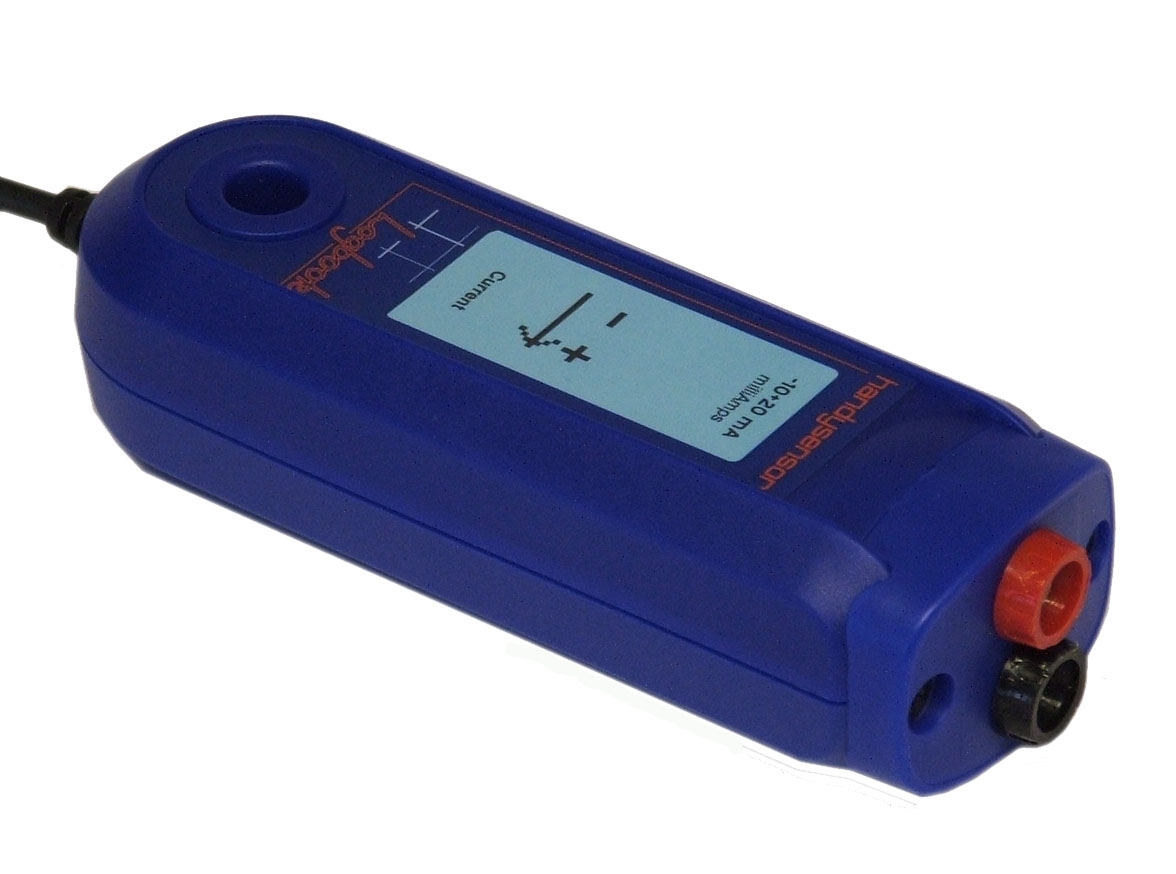

SENSOR CURRENT +/-10 AMPS
This sensor will give an accurate reading of voltage in any circuit configuration with a supply voltage of less than 20Volts. ±10 Amps resolution 0.02 Amps.
Description
This sensor will give an accurate reading of voltage in any circuit configuration with a supply voltage of less than 20Volts. ±10 Amps resolution 0.02 Amps.
Logger compatibility: ScienceScope Type 2 (See ScienceScope website for details)
This sensor is designed for use with a 20 mA current loop output device. To calibrate for measured units use the Datadisc Setup Menu > Calibrate subMenu Maximum recording frequency with Datadisc is 50 microseconds Types of investigation to be carried out:Voltage and current sensors can be used together anywhere in a circuit with a supply voltage of up to 24 Volts with no interference between sensors. All work from DC to 10KHz.Derived Sensors: Power, Energy, Voltage (if circuit resistance is known), RMS Current, Resistance (requires a voltage sensor). Typical Investigations:
Current and voltage in a diode Current and voltage in a filament bulb Current and voltage in a LDR Current and voltage in a resistor Current and voltage in a thermistor Energy consumption Heat in a resistor Relationship between power, voltage and current Relationship between steady current, charge and time Resistance in a circuit AC current-generator Force on a current-carrying wire in a magnetic field (Lorentz force)
