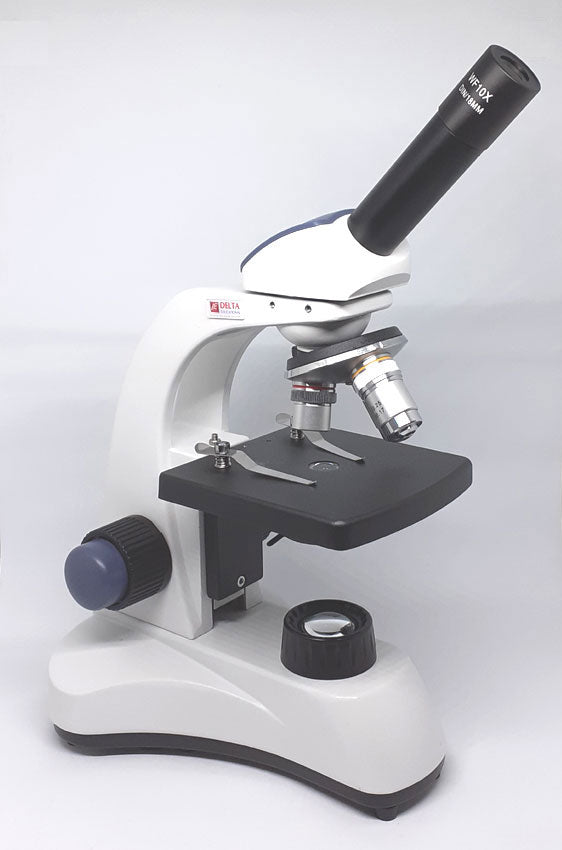

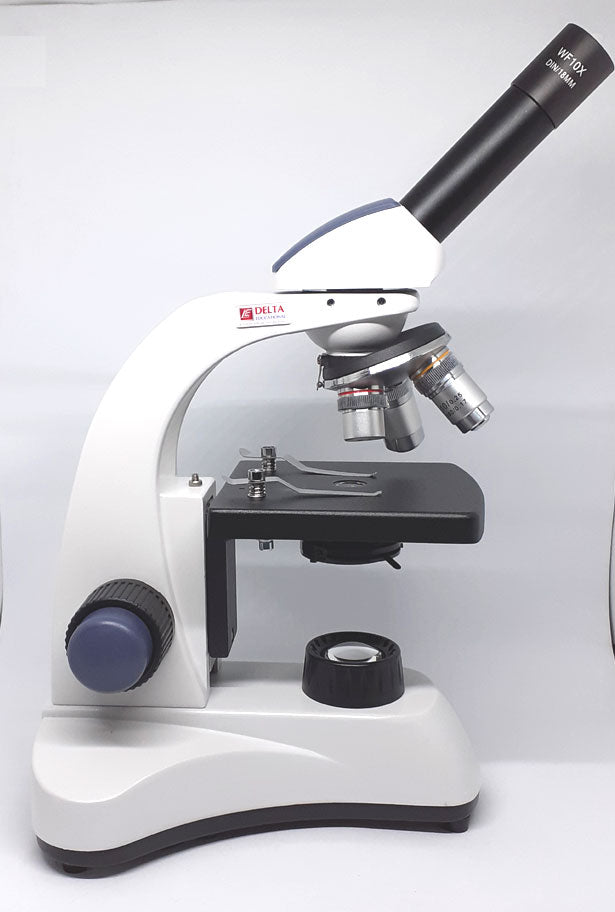

Microscope Monocular Junior/Senior – 40x–400x LED School Microscope

This monocular school microscope bridges junior and senior levels, offering precise coarse and fine focus, LED illumination and a widefield eyepiece for clear views at 40x–400x magnification.

Key Features

• Junior to senior use: suitable for teaching microscopy skills from introductory to senior classes
• Wide magnification range: 40x–400x using 4x, 10x and 40x achromat objectives
• Fine focus control: coaxial coarse and fine focus for sharp images at high power
• Bright LED lighting: built-in 1 W LED with integrated power supply
• Iris diaphragm condenser: N.A. 0.65 condenser and daylight blue filter for contrast control
• Durable construction: die-cast metal housing for long-term school use
• Stage features: plain stage with spring-loaded clips for easy slide placement
• NZ compliant: designed for 240 V, 50/60 Hz school laboratory power

Specifications

• Head: monocular with 45° inclined eyepiece tube
• Eyepiece: widefield 10x/18 mm
• Objectives: achromat 4x, 10x, 40x
• Magnification: 40x–400x

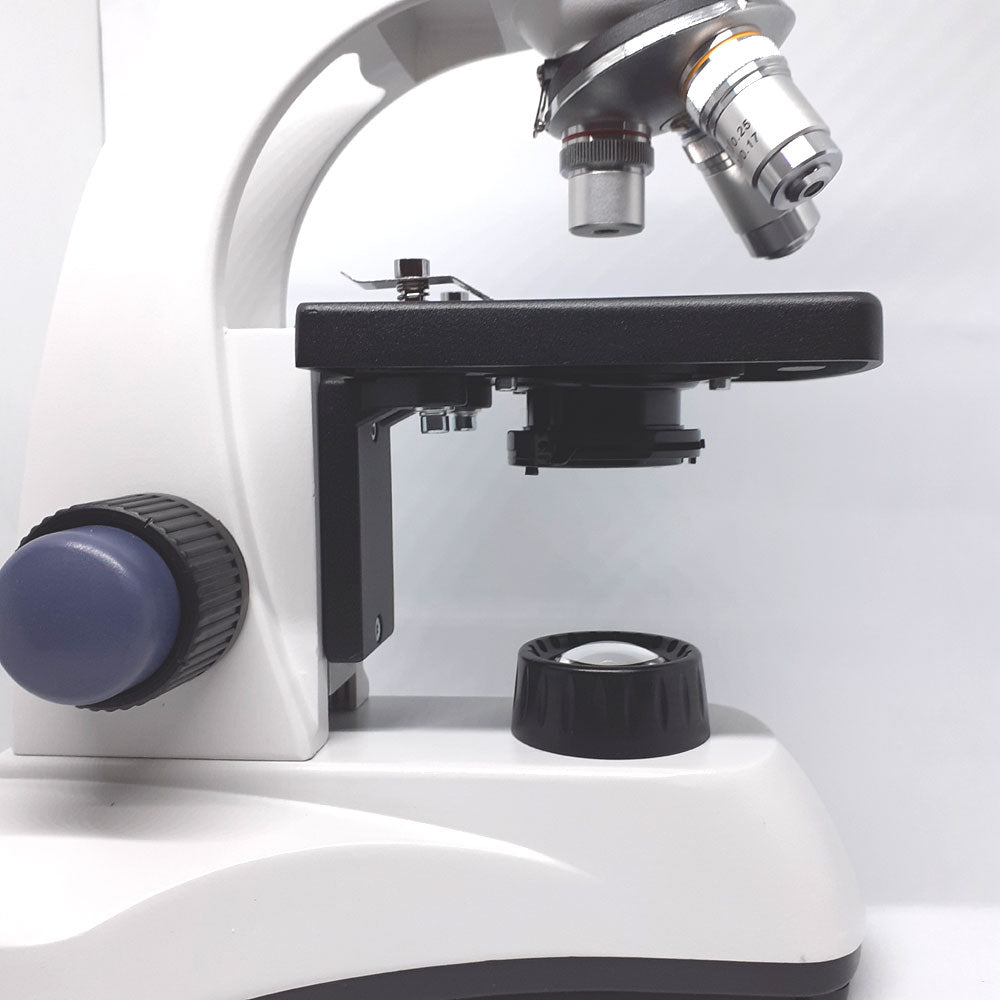

• Condenser: iris diaphragm condenser N.A. 0.65 with daylight blue filter
• Stage: 123 × 119 mm plain stage with spring-loaded stage clips
• Focus: bilateral coaxial coarse and fine focus, 200 graduations, 12.5 µm per graduation, 2.5 mm per rotation, total travel ~15 mm
• Illumination: built-in long-life 1 W LED

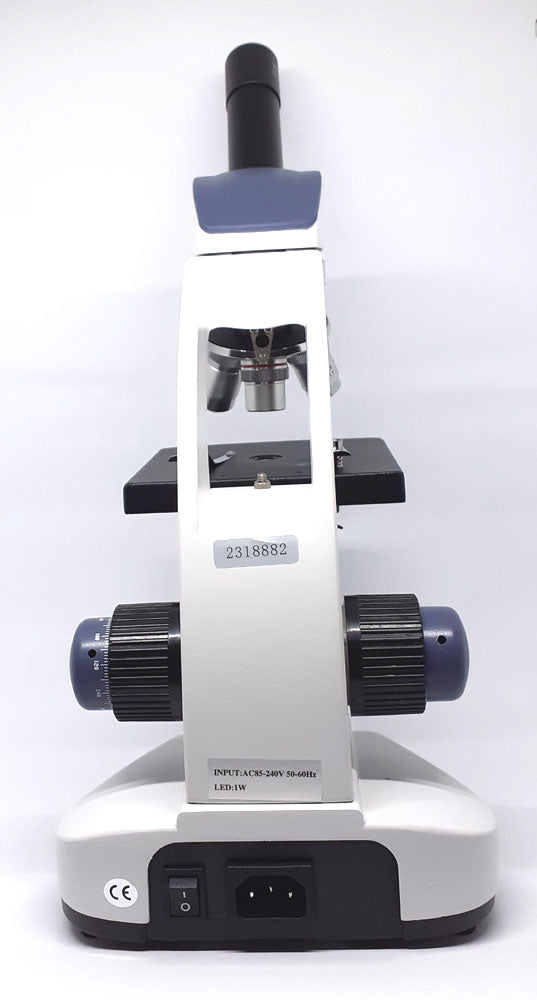

• Power: AC 240 V, 50/60 Hz
• Accessories included: daylight blue filter, dust cover, 2 × Allen keys
