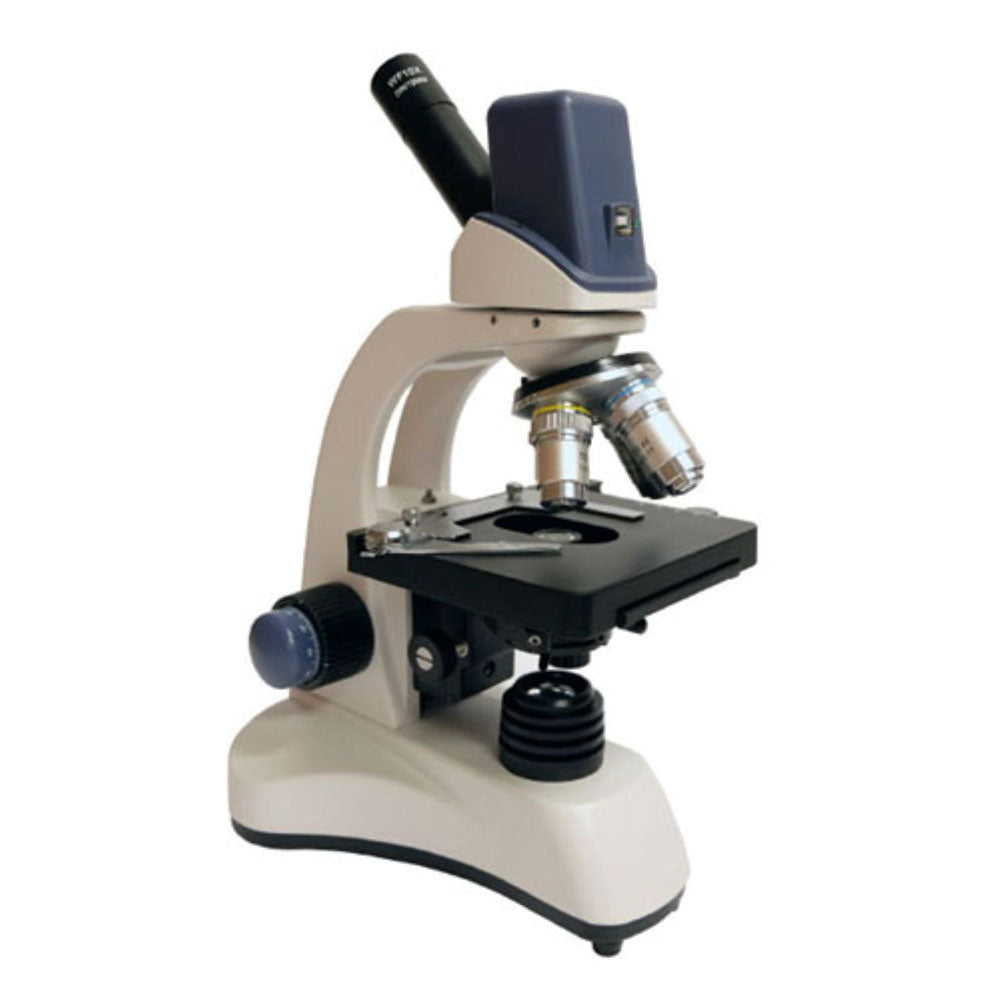

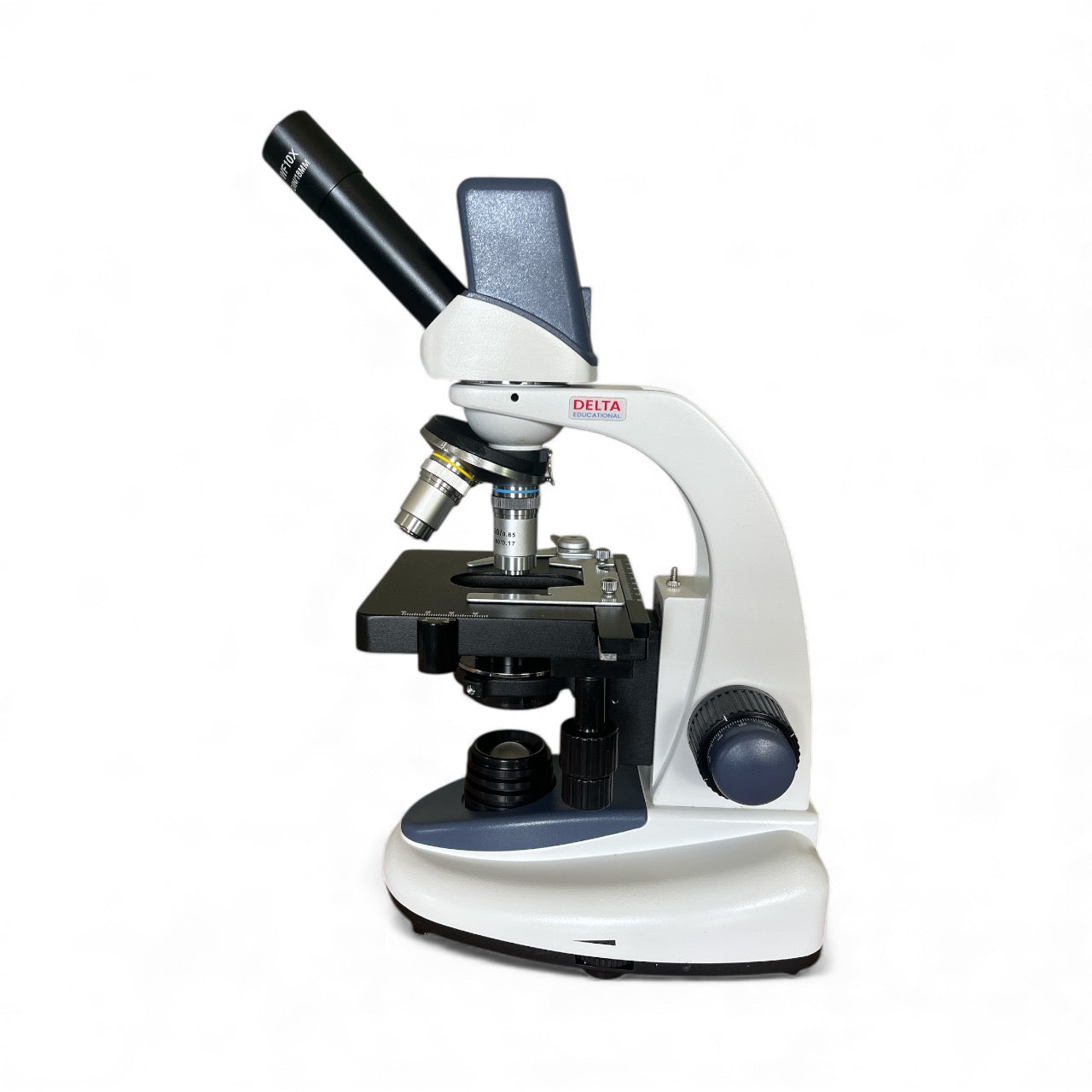

Digital Monocular Microscope with USB Camera – 1.3MP

This digital monocular microscope functions both as a traditional optical microscope and as a USB-connected imaging system, ideal for capturing and analysing microscope images in school and laboratory settings.

Key Features

• Integrated 1.3 MP camera: built-in CMOS USB camera for still images and video
• Versatile software: capture, annotate and measure images using supplied software
• Quality optics: 4x, 10x and 40x objectives with 10x widefield eyepiece
• Smooth focusing: coaxial coarse and fine focus with fine graduations for precise control
• Bright LED illumination: 1 W LED with dimmer and built-in power supply
• Durable design: stable triangular base and modern, easy-clean finish
• Cross-platform support: software compatible with Windows and Mac OS

Specifications

• Head: monocular, 45° inclined viewing tube
• Camera: 1.3 MP CMOS USB camera integrated into head
• Eyepiece: 10x widefield (WF)
• Objectives: 4x, 10x, 40x
• Nosepiece: quadruple revolving nosepiece on ball bearings
• Condenser: adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
• Focus: coaxial coarse and fine focus, 200 graduations, 12.5 µm per graduation, 2.5 mm per rotation, total travel ~15 mm
• Stage: 123 × 128 mm stage with integrated 70 × 27 mm X–Y mechanical stage
• Illumination: 1 W LED with dimmer control and built-in power supply
• Power: 240 V AC with mains lead and plug
• Software compatibility: Windows 7/8/10 and Mac OS versions available
