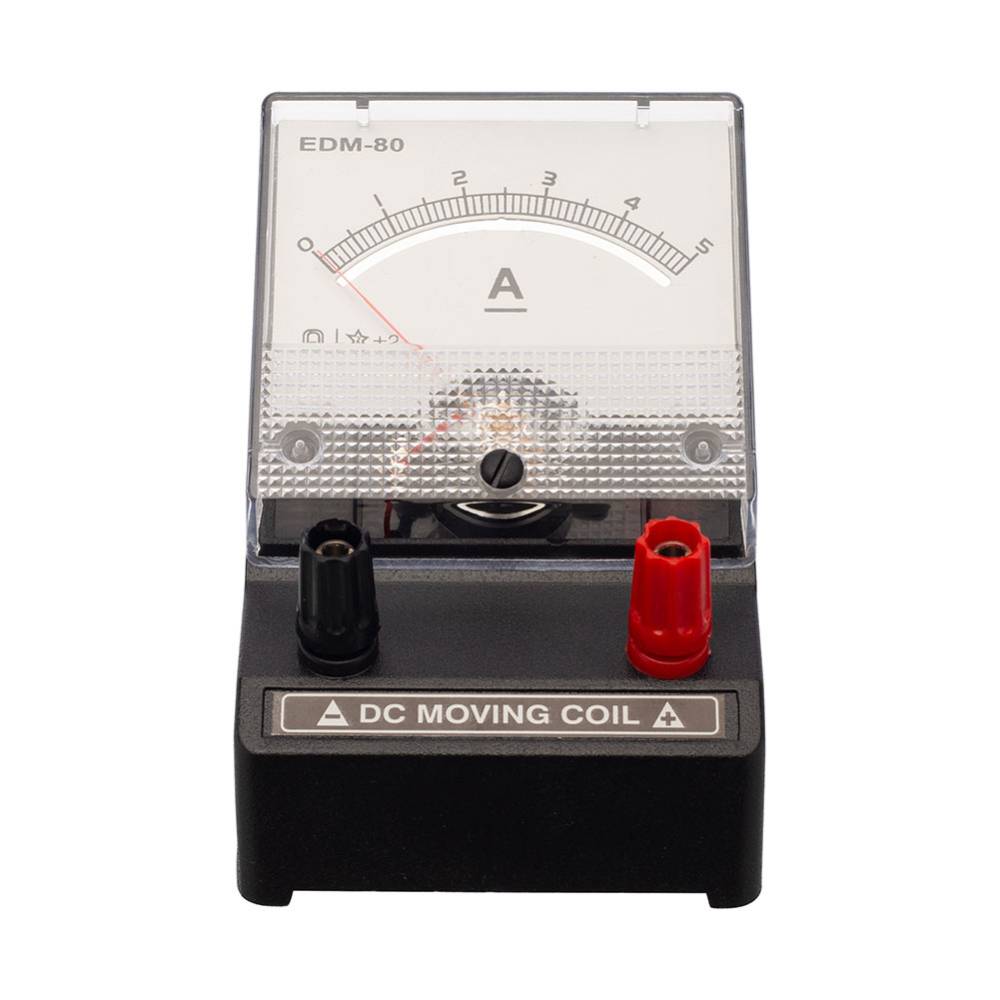

Moving Coil DC Ammeter – 0–5A Single Range

Moving Coil DC Ammeter – 0–5A Single Range

SKU:44AD

Precision Analogue Meter for DC Current Measurement

This Moving Coil DC Ammeter is designed for accurate direct current (DC) measurements in educational, lab, and light industrial settings. Built with a permanent magnet and spring-controlled movement, the ammeter features jewelled bearings, hard-polished pivots, and a knife-edge pointer for stability and precision over time.

The instrument features a 60 mm anti-parallax mirror scale and a 72 × 72 mm dial, making readings clear and reliable. The meter comes pre-mounted on a sturdy plastic/acrylic base with colour-coded terminals, and includes an internal shunt for accurate single-range readings up to 5A DC.

⚠️ Casing colour may vary based on supply.

Technical Features:

  • Measurement Range: 0–5A DC (other versions available from 0–1A to 0–10A)
  • Movement: Moving coil with permanent magnet
  • Mechanism: Spring-controlled, with knife-edge pointer
  • Bearings: Jewelled bearings and hard-polished pivots for long-term accuracy
  • Scale Length: 60 mm with anti-parallax mirror
  • Dial Size: 72 × 72 mm
  • Accuracy: ±2% FSD (Full Scale Deflection)
  • Mounting: Plastic/acrylic stand with colour-coded terminals
  • Overall Dimensions: Approx. 90 × 110 × 125 mm

Ideal For:

  • Physics and electronics education
  • Science labs and practical demonstrations
  • DC circuit testing and verification
  • Technical training and vocational programmes
Regular price $28.00 NZD
Regular price Sale price $28.00 NZD
