Cathode Ray Tube Maltese Cross

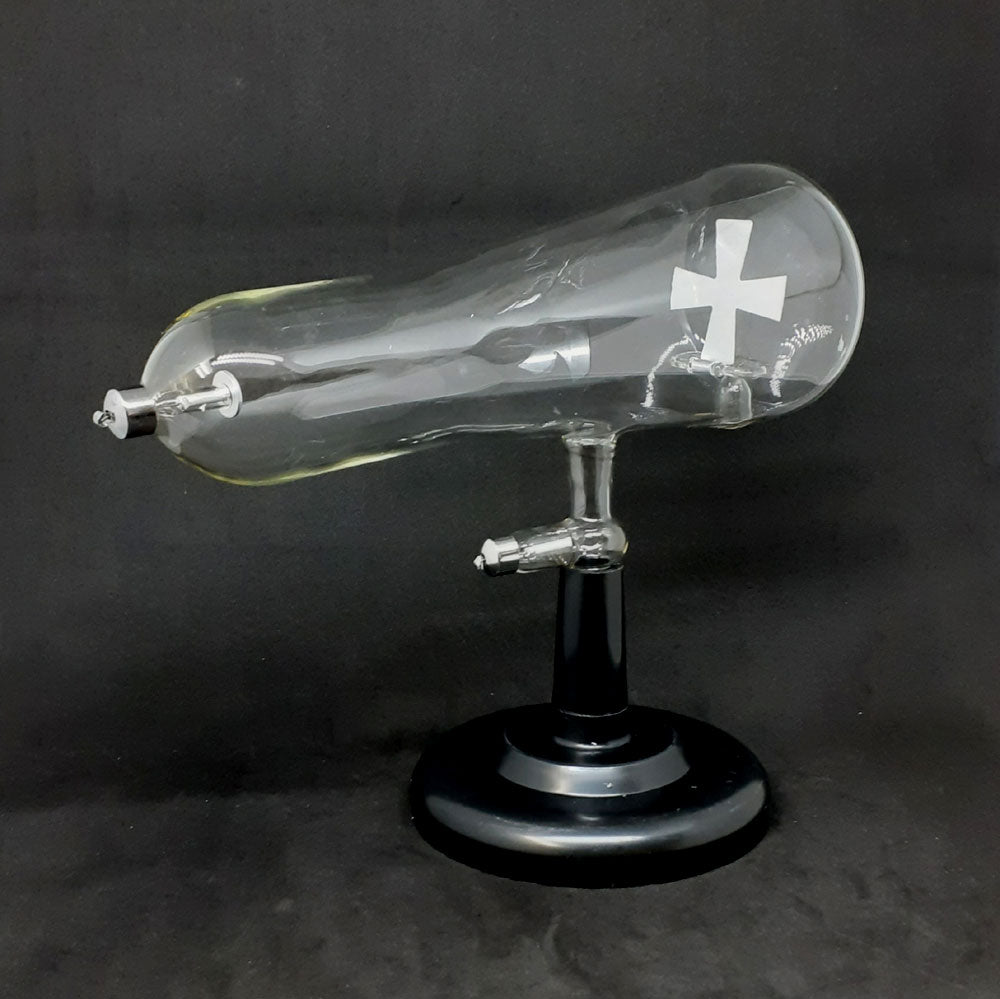

The Cathode Ray Tube Maltese Cross is a classic physics demonstration tube used to show that cathode rays travel in straight lines and are deflected by a magnetic field. It is ideal for teaching fundamental concepts of electron behaviour in secondary school and tertiary physics laboratories.

When operated with a suitable high-voltage power source, the Maltese Cross casts a distinct shadow, demonstrating the straight-line motion of cathode rays. Bringing a magnet close to the illuminated image causes the rays to deflect, allowing students to observe the effect of magnetic fields on charged particles.

Key Features

• Demonstrates the straight-line travel of cathode rays
• Shows the deflection of cathode rays by a magnetic field
• Produces a clear Maltese Cross shadow for classroom demonstrations
• Suitable for physics teaching and laboratory demonstrations

Specifications

• Type: Cathode Ray Tube – Maltese Cross
• Requires a high-voltage power source for operation
• Compatible with induction coils producing 10–50kV continuous voltage

Applications

• Physics classroom demonstrations
• Teaching electron behaviour and cathode rays
• Demonstrating magnetic field deflection
• Secondary school and university laboratories

Compatibility

• Suitable for use with the 42IC Induction Coil or other compatible high-voltage power supplies producing 10–50kV continuous voltage.

Safety Information

• This product must only be used with a suitable high-voltage power source by trained personnel following appropriate laboratory safety procedures.
