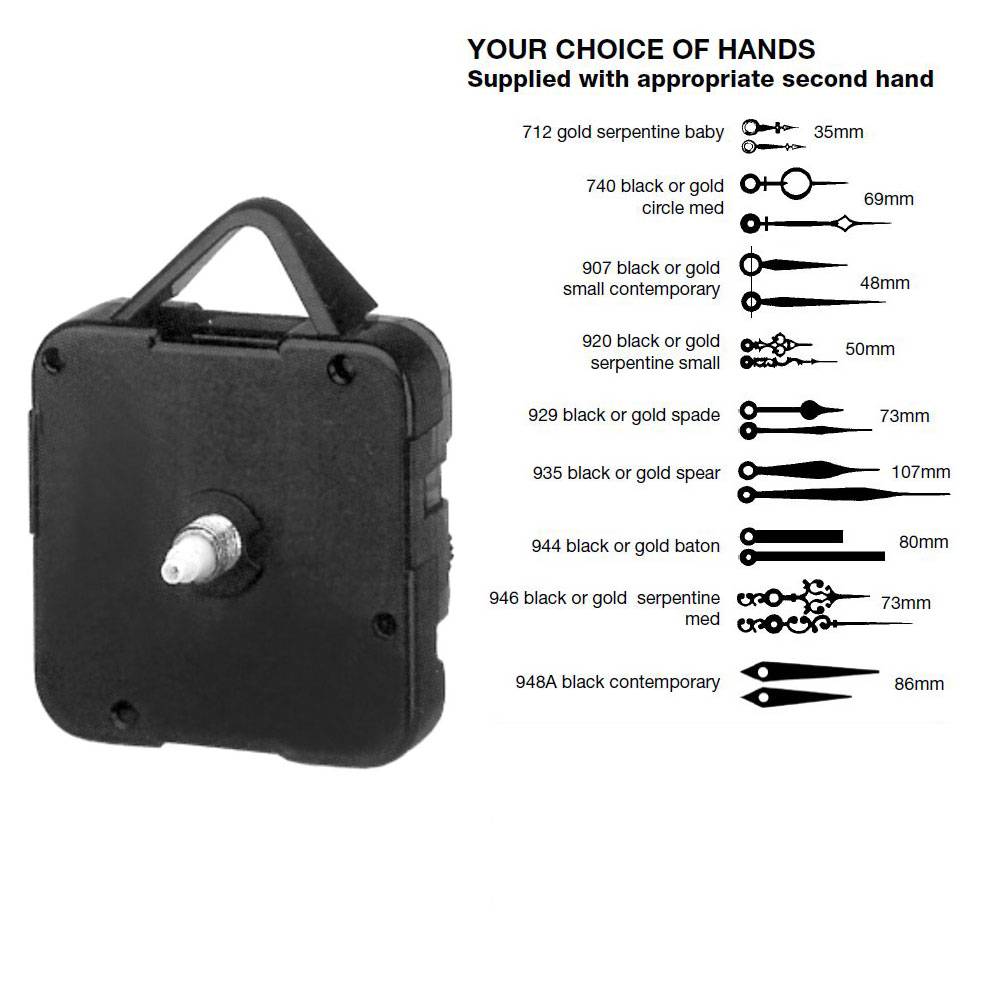

• Clock mechanism with aluminium hands, washers and securing nut for classroom clock-making projects; available in 13 mm, 17 mm and 23 mm shaft lengths
1 1

Clock Mechanism 23mm With Hands

Clock Mechanism 23mm With Hands

02CM23

This 23 mm clock mechanism with hands is designed for classroom technology, STEM, craft and clock-making projects.

Key Features

  • Suitable for wood, acrylic and other clock-face materials
  • Includes aluminium hands, subject to availability
  • Includes rubber washer, brass washer and securing nut
  • Requires 1 × AA battery (not included)

Specifications

  • Shaft Length: 23 mm
  • Thread Length: 15 mm
  • Recommended Maximum Clock-Face Thickness: 13 mm, allowing at least 2 mm for washers and securing nut

How to Choose the Right Clock Mechanism

Measure the thickness of your clock face before selecting a mechanism. Choose a threaded shaft long enough to pass through the clock-face material and still accommodate the washers and securing nut. The overall shaft length is not the same as the maximum clock-face thickness.

Clock mechanism Shaft length Thread length Recommended maximum face thickness
13 mm mechanism (02CM1) 13 mm 5 mm 3 mm
17 mm mechanism (02CM17) 17 mm 9 mm 7 mm
23 mm mechanism (02CM23) 23 mm 15 mm 13 mm

Tip: If your clock-face material is close to the maximum thickness, check that the securing nut can be fully fitted before assembly. Allow at least 2 mm of thread for the washers and nut, as indicated in the specifications.

Please specify your preferred set of hands in the notes section at checkout.
