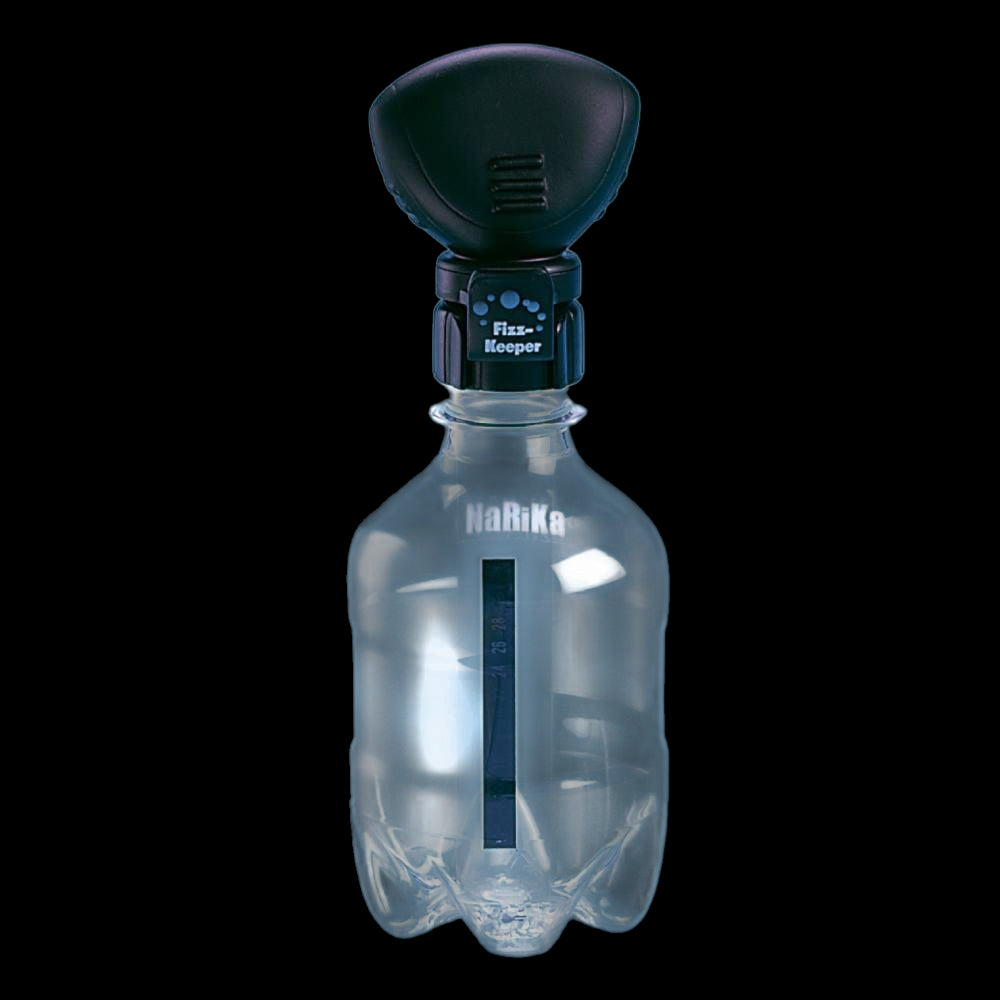

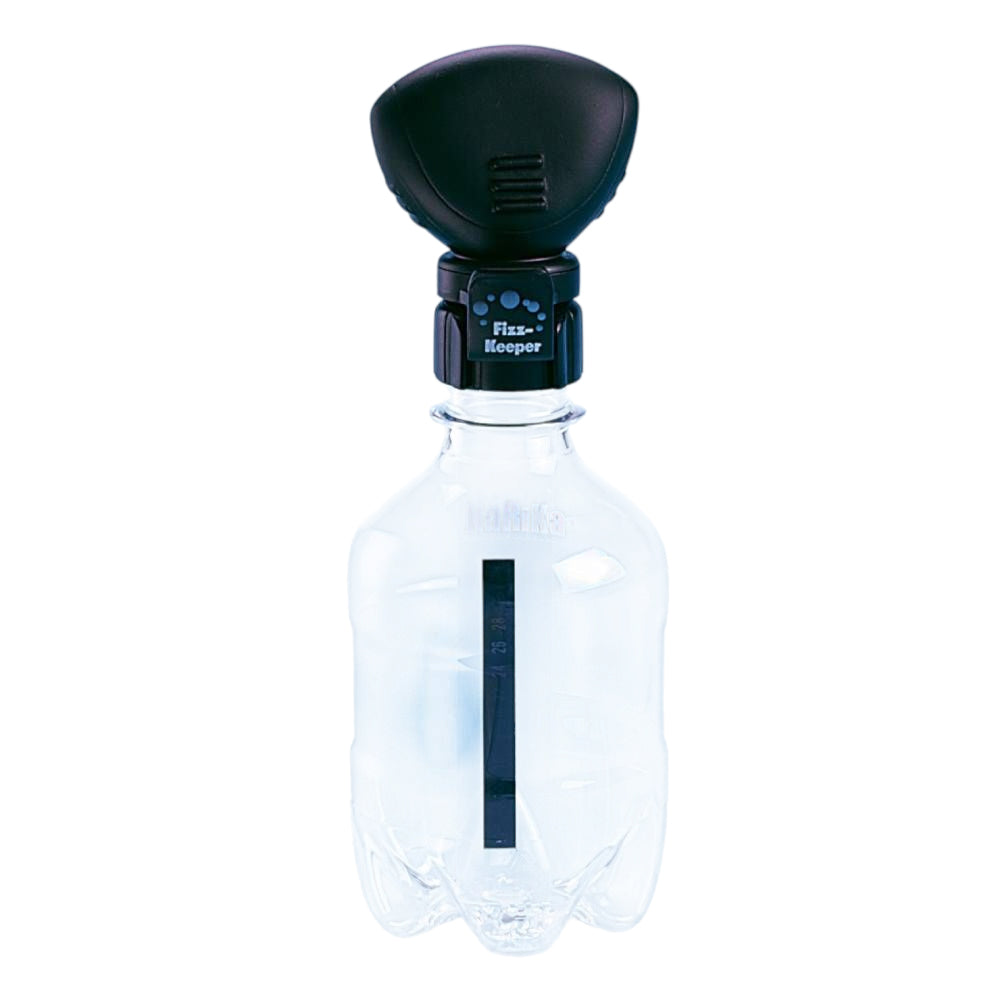

Narika Cloud Bottle – Cloud Formation Experiment Kit

The Narika Cloud Bottle is a compact, hands-on demonstration kit for exploring cloud formation, air pressure and temperature changes. Add a few drops of water to the bottle, use the hand pump to increase the pressure, then release the pressure to observe a cloud forming inside. The liquid-crystal temperature strip helps students investigate the temperature changes associated with compression and expansion.

Key Features

• Demonstrates cloud formation through changes in air pressure and temperature
• Hand-operated pump for pressurising the bottle
• Liquid-crystal temperature strip for observing temperature changes
• Compact 375mL PET bottle
• Suitable for repeatable classroom demonstrations of adiabatic compression and expansion

Specifications

• Bottle capacity: 375mL
• Bottle material: PET
• Bottle heat-resistance rating: Up to 60°C
• Liquid-crystal temperature strip range: 10–32°C

Classroom Applications

• Observe how a cloud forms when compressed air is released
• Explore changes in temperature during compression and expansion
• Introduce cloud formation, condensation and weather processes

Manufacturer Resource

Cloud Bottle Instruction Manual (PDF)

Demonstration Video

Related Weather Equipment

Explore the 26DWS Digital Weather Station and 44TH538 Max-Min Thermometer for further weather and temperature investigations.
