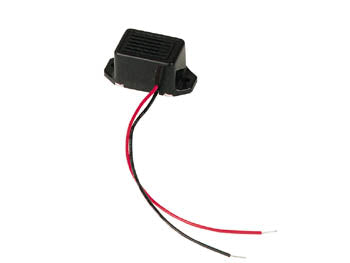

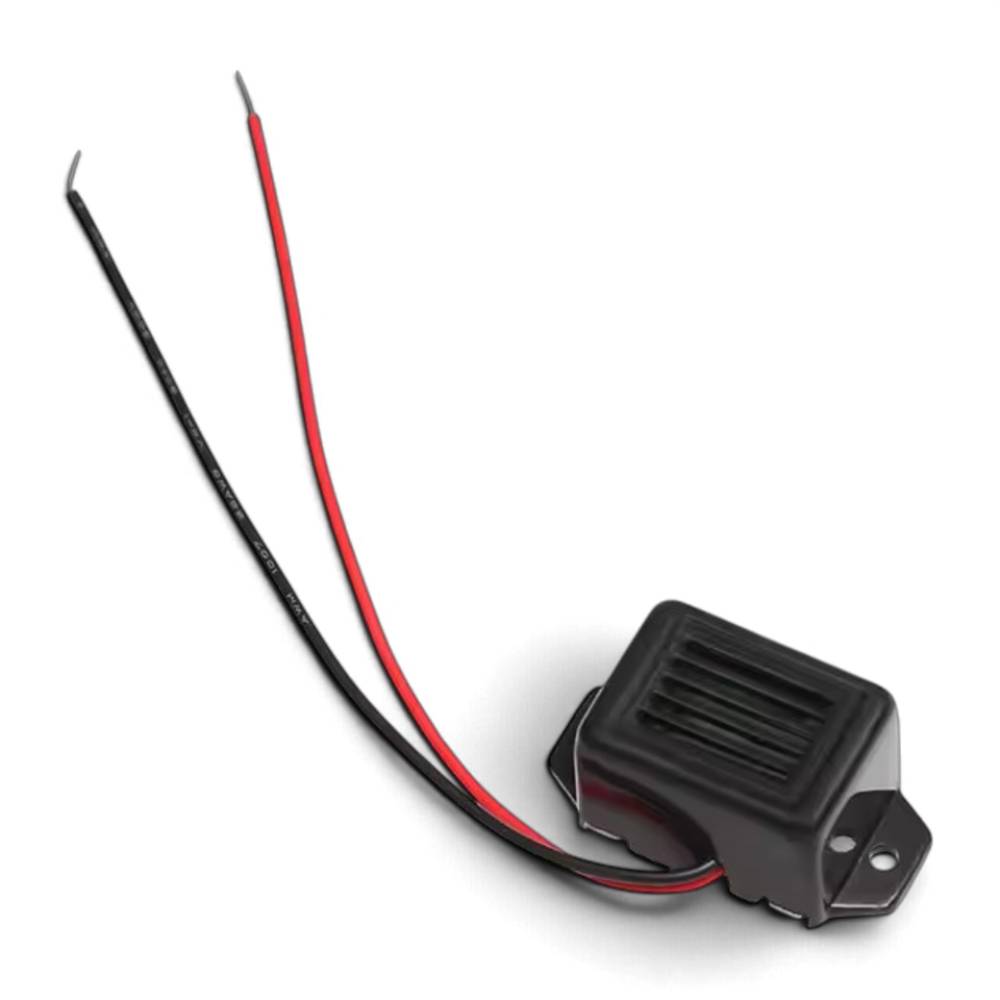

Electronic Buzzer 6–15V DC

This compact electronic buzzer operates from 6–15 V DC and is suitable for alarms, electronics projects and classroom circuit activities.

Specifications

• Rated Voltage: 12 V DC
• Operating Voltage: 6–15 V DC
• Maximum Rated Current: 25 mA at 12 V DC
• Minimum Sound Pressure: 80 dB at 12 V DC / 20 cm
• Resonant Frequency: 400 ±100 Hz
• Operating Temperature: -20 to +60°C
• Dimensions: Approx. 23 × 17 × 15 mm
• Weight: Approx. 10 g
