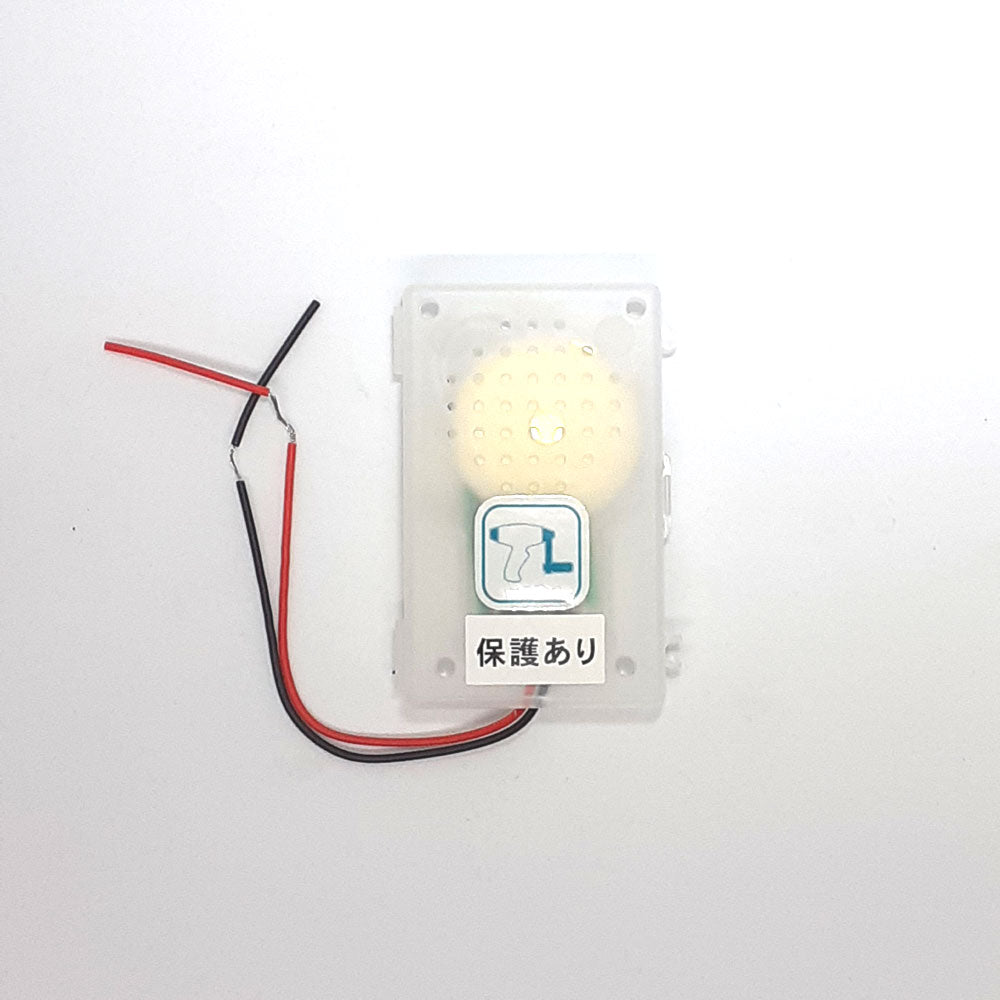

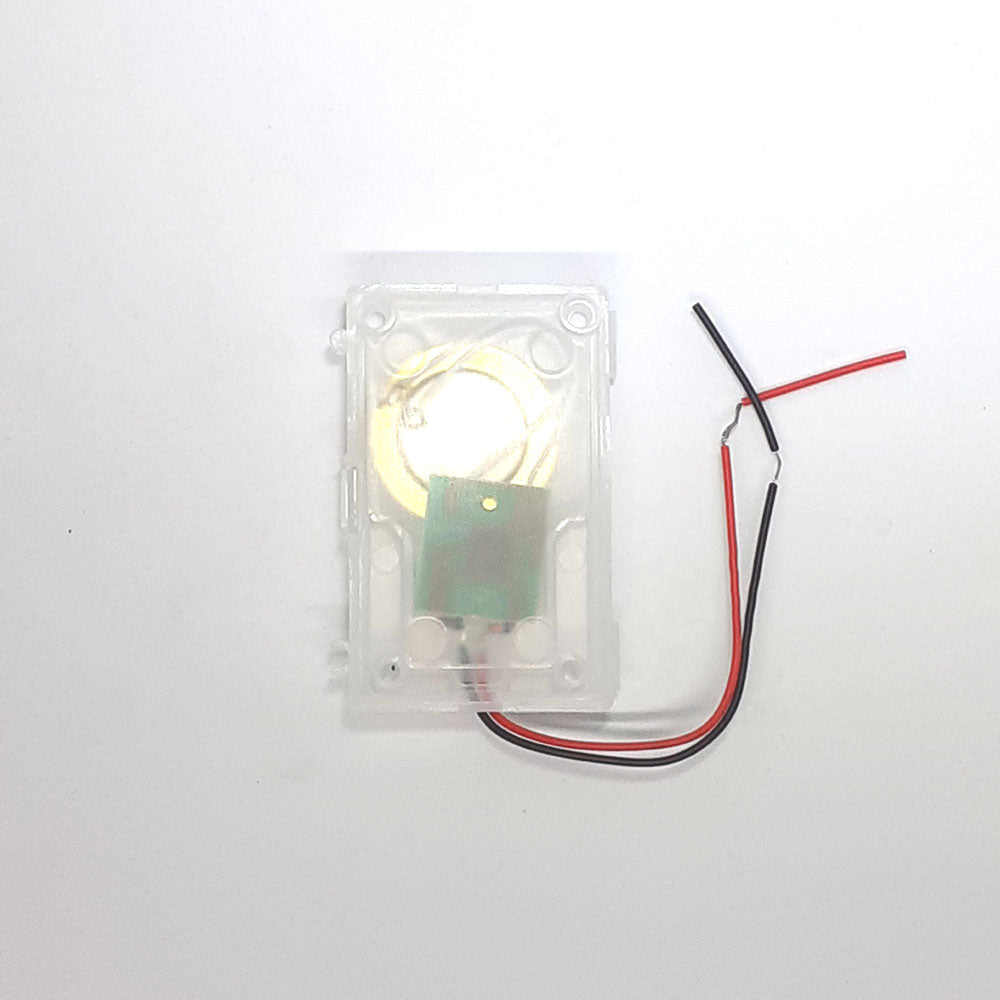

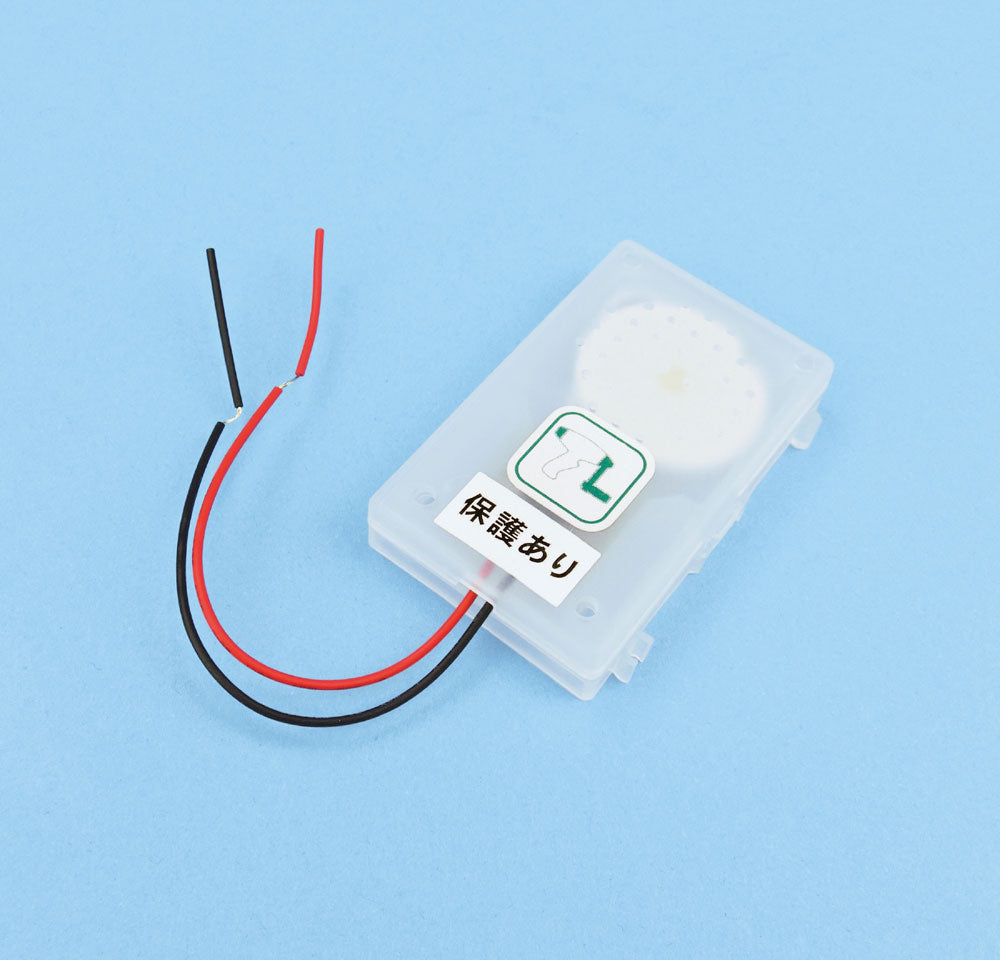

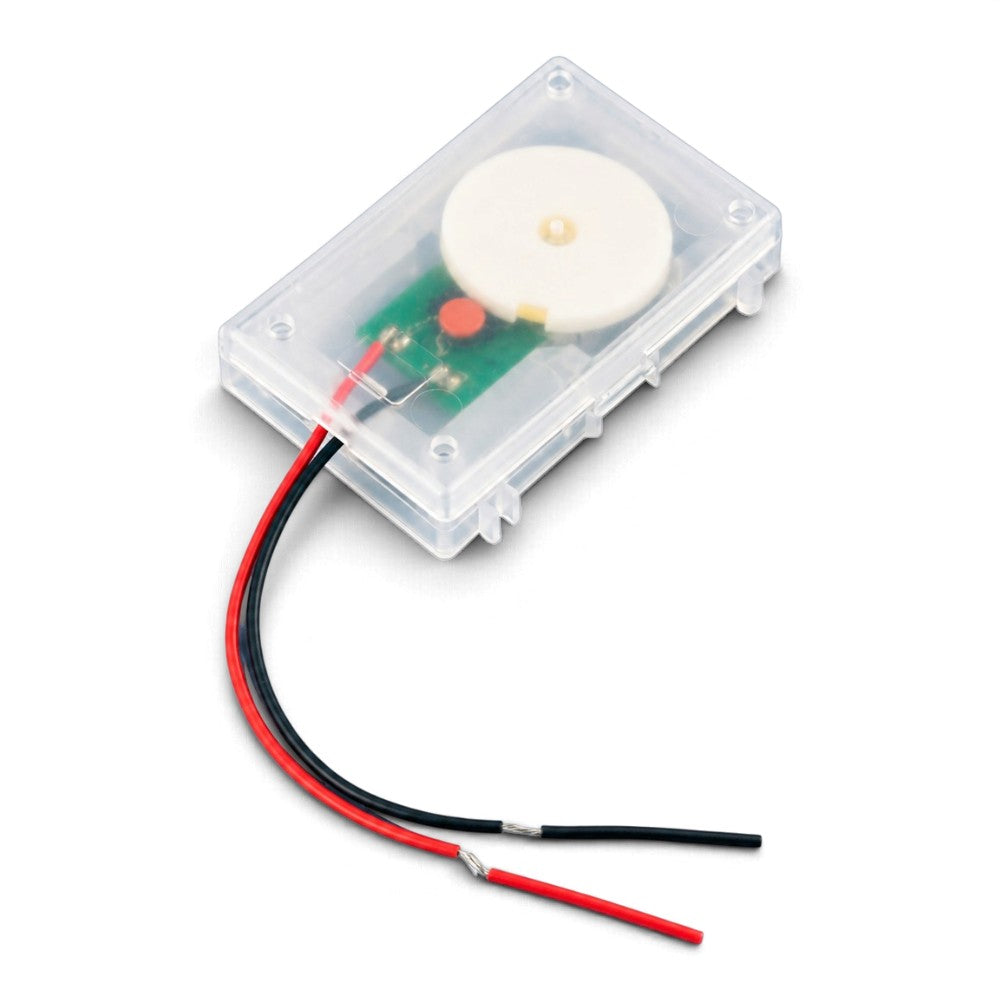

Electronic Melody Module

The Electronic Melody Module with built-in protection circuit is designed for classroom demonstrations of energy conversion. Connect it to a Genecon V3 hand-held generator (42GV3) to demonstrate how mechanical energy is converted into electrical energy and then sound as the module plays the melody Für Elise.

The module can also be operated with suitable dry cells or a Genecon DUE generator (42GDUE), provided the module's operating voltage is respected. Its built-in protection circuit helps protect against excessive current and voltage, but the stated operating limits must still be observed.

Key Features

• Plays the melody Für Elise
• Demonstrates electrical energy conversion into sound energy
• Suitable for experiments with the Genecon V3, Genecon DUE or appropriate dry cells
• Built-in protection circuit
• Compact module with connecting leads

Specifications

• Operating voltage: 1.2–3.6V
• Current: 0.15–0.3mA
• Dimensions: 38 × 62 × 11mm
• Melody: Für Elise
• Product code: 42GVM

Important Information

Do not connect to household mains electricity. When using a hand-held generator, ensure the module is operated within its specified voltage range.
