Electrostatic High-Voltage Genecon
Electrostatic High-Voltage Genecon
SKU:42EHVG

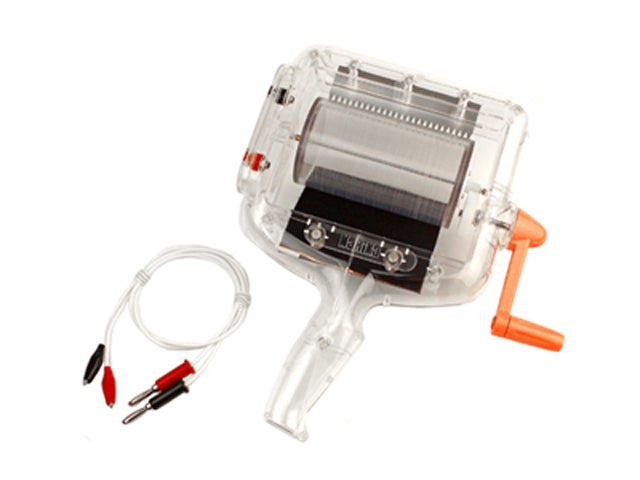

The Electrostatic High-Voltage Genecon is a hand-operated generator designed for demonstrating static electricity, charge separation and electrostatic effects in science classrooms. Turning the handle generates more than 10,000V at the dedicated output cables, enabling experiments with compatible electrostatics accessories without a mains-powered Van de Graaff generator.
Key Features
- Hand-operated high-voltage electrostatic generator with output exceeding 10,000V
- Transparent housing allows students to observe the internal mechanism
- Separate red and black output cables support demonstrations of positive and negative charge
- Supports experiments involving attraction, repulsion, electrical discharge and electrostatic motion
- Replaceable gear set available for servicing
- Reviewed by the UK's Institute of Physics (IOP)
Specifications
- Output: More than 10,000V at the dedicated cable ends
- Dimensions: Approximately 223 × 255 × 75mm
- Weight: Approximately 400g
- Included cables: 1 red and 1 black
- Housing material: Polycarbonate resin
- Generator materials: PVC resin (negative pole) and felt (positive pole)
- Gear material: Polyacetal resin
Educational Applications
Explore electrostatic charge generation, the attraction and repulsion of charges, electrostatic induction and electrical discharge. Compatible accessories can extend investigations to electrostatic motors, collecting spheres and the Hamilton flywheel. Teacher supervision and appropriate high-voltage safety precautions are required.
Product Manual
Demonstration Video
Watch the demonstration on YouTube
Teacher Resources – Free PDF Downloads
Classroom activities and experiment guides for exploring static electricity with the Genecon and relevant accessories.
- Static Electricity in Our Life (PDF)
- Experiment Using Electrostatic Motor (PDF)
- Investigate Electrostatic Property (PDF)
- Attractive and Repulsive Force Experiments Using Electric Pendulum (PDF)
- Discharging Phenomena Using Aluminium Collecting Spheres (PDF)
- Attractive and Repulsive Force Experiments Using Aluminium Collecting Sphere (PDF)
- Discharging Experiments Using Hamilton Flywheel (PDF)
- Lighting Experiment Using Discharging Tubes (PDF)
Extend your electrostatics experiments with compatible accessories, including collecting spheres, electric pendulums and electrostatic motors. See the recommended accessories on this page. Some activities require separately purchased accessories.
Also see the large Van de Graaff generator (42VDG400).
