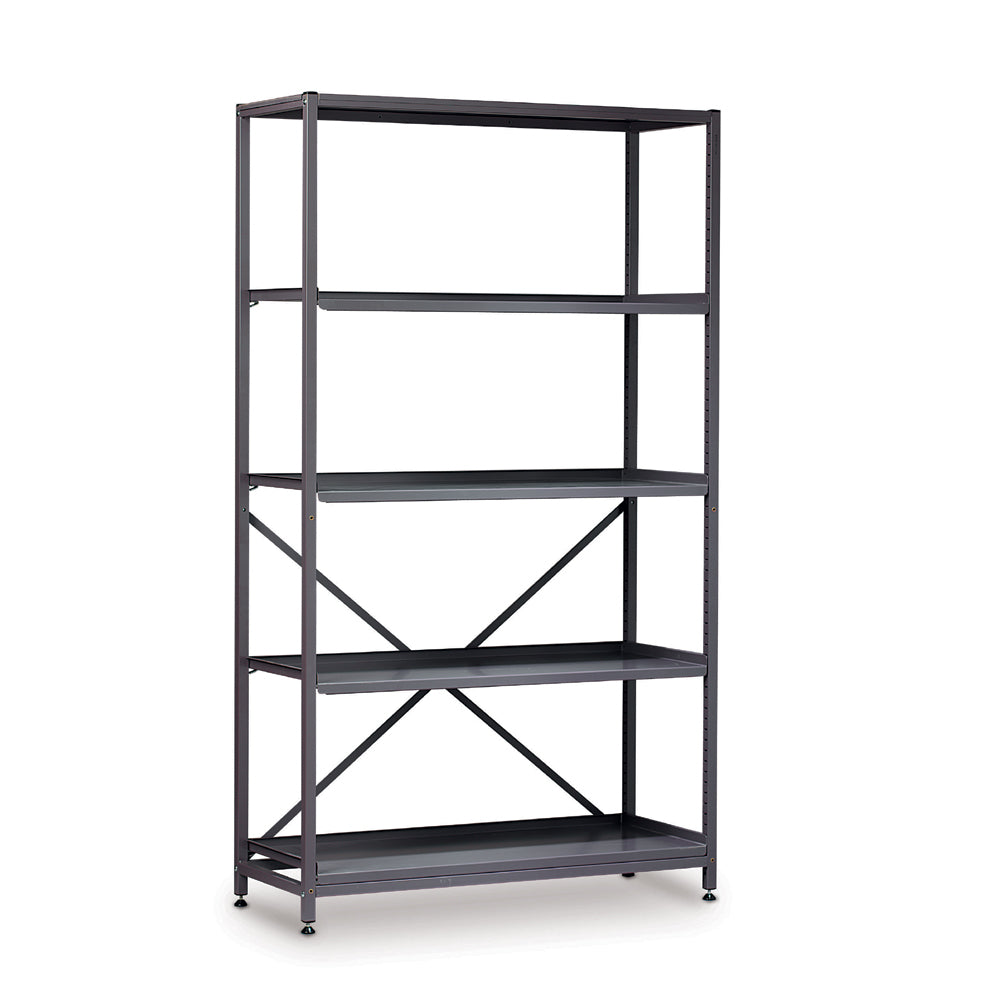

Gratnells Tall Wide Frame for Shelving

The Gratnells Tall Wide Frame for Shelving is a flexible tall treble-span storage frame designed to maximise space in laboratories, classrooms and prep rooms. Its wide, open design is suitable for larger items and can be positioned alongside existing Gratnells storage units to extend storage capacity.

Designed for use with the 44G363 Gratnells Science Treble Shelf with Clips, the frame can be configured to suit larger equipment and resources. It is supplied with a metal top and without trays, runners or shelves. Adjustable feet and back diagonal bars provide additional rigidity, and the frame can be fixed to a wall for additional stability.

Constructed from powder-coated steel, Delta supplies this frame in Gratnells Grey.

Key Features

• Tall treble-span frame for large-item storage
• Wide, open frame without columns for use with shelves
• Compatible with 44G363 Gratnells Science Treble Shelf with Clips
• Adjustable feet and back diagonal bars for stability
• Can be attached to a wall for additional stability
• Supplied with a durable metal top
• 250 kg frame load capacity
• Powder-coated steel construction in Gratnells Grey
• Supplied without trays, runners or shelves

Educational Benefits

• Maximises storage space in laboratories, classrooms and prep rooms
• Suitable for larger equipment and resources that require open shelving
• Can be positioned alongside existing Gratnells units to extend storage capacity
• Supports high-density storage where space is limited

Dimensions & Specifications

• Dimensions (mm): H 1850 × W 1055 × D 420
• Product Weight: 15.4 kg
• Frame Load Capacity: 250 kg
• Material: Powder-coated steel
• Frame Colour: Gratnells Grey
• Frame Width: Treble Span
• Frame Height: Tall
• Supplied with metal top; trays, runners and shelves sold separately

Support Documents

• 44G3622 Assembly Instructions

Assembly Video
