Hooke's Law Spring Set – 5 Non-Proportional Springs

This IEC Hooke's Law spring set contains 5 tension springs with an eye at each end, designed for practical investigations of the relationship between applied load and spring extension. Students can compare the extension of different springs under known loads and investigate Hooke's law and spring stiffness.

The five non-proportional springs have different combinations of coil diameter, length and wire thickness, allowing students to investigate and compare their behaviour under load.

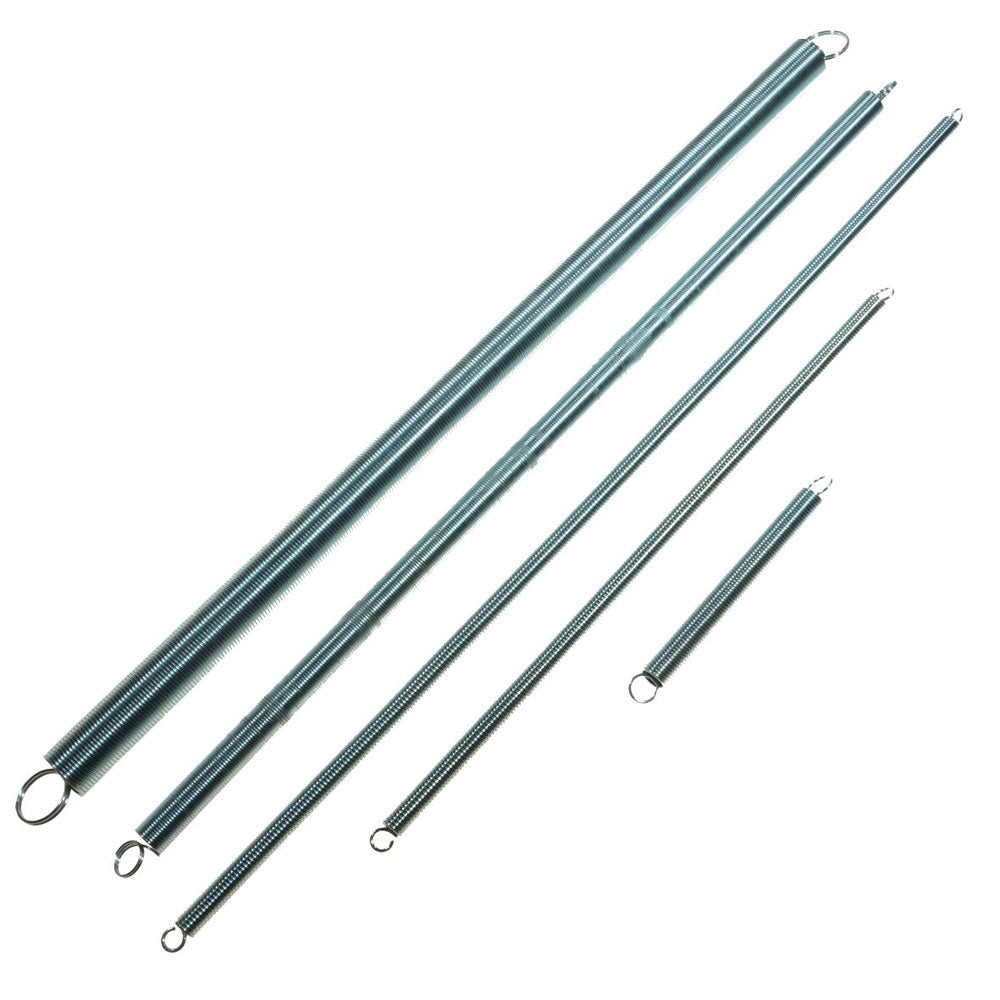

Set Contents and Specifications

• 1 × tension spring: 6.2mm diameter × 320mm length; 1.02mm wire diameter
• 1 × tension spring: 6.2mm diameter × 210mm length; 1.02mm wire diameter
• 1 × tension spring: 7.8mm diameter × 70mm length; 0.90mm wire diameter
• 1 × tension spring: 9.2mm diameter × 300mm length; 0.71mm wire diameter
• 1 × tension spring: 14.5mm diameter × 300mm length; 0.88mm wire diameter

Key Features

• Set of 5 metal tension springs with eyelets at both ends
• Different spring dimensions for comparative investigations
• Suitable for Hooke's law, force and extension experiments
• Designed for school physics and mechanics practical work

Suggested Equipment

Use with a suitable support stand, ruler and known masses, such as the 44SM100 Slotted Mass Set and 13MR1 Metre Ruler. Choose loads within the safe working extension of each spring; do not overstretch.

Related Spring Set

See the 45SHP Hooke's Law Spring Set – 6 Proportional Springs.
