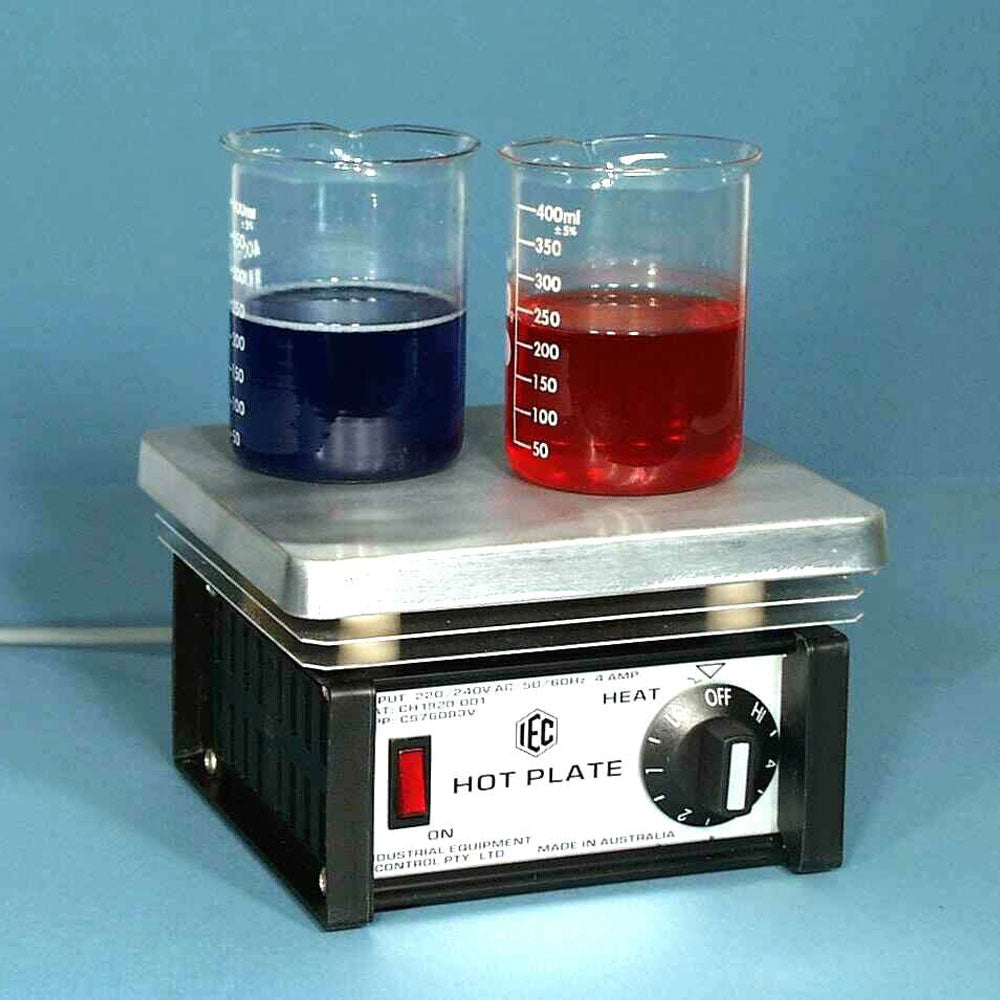

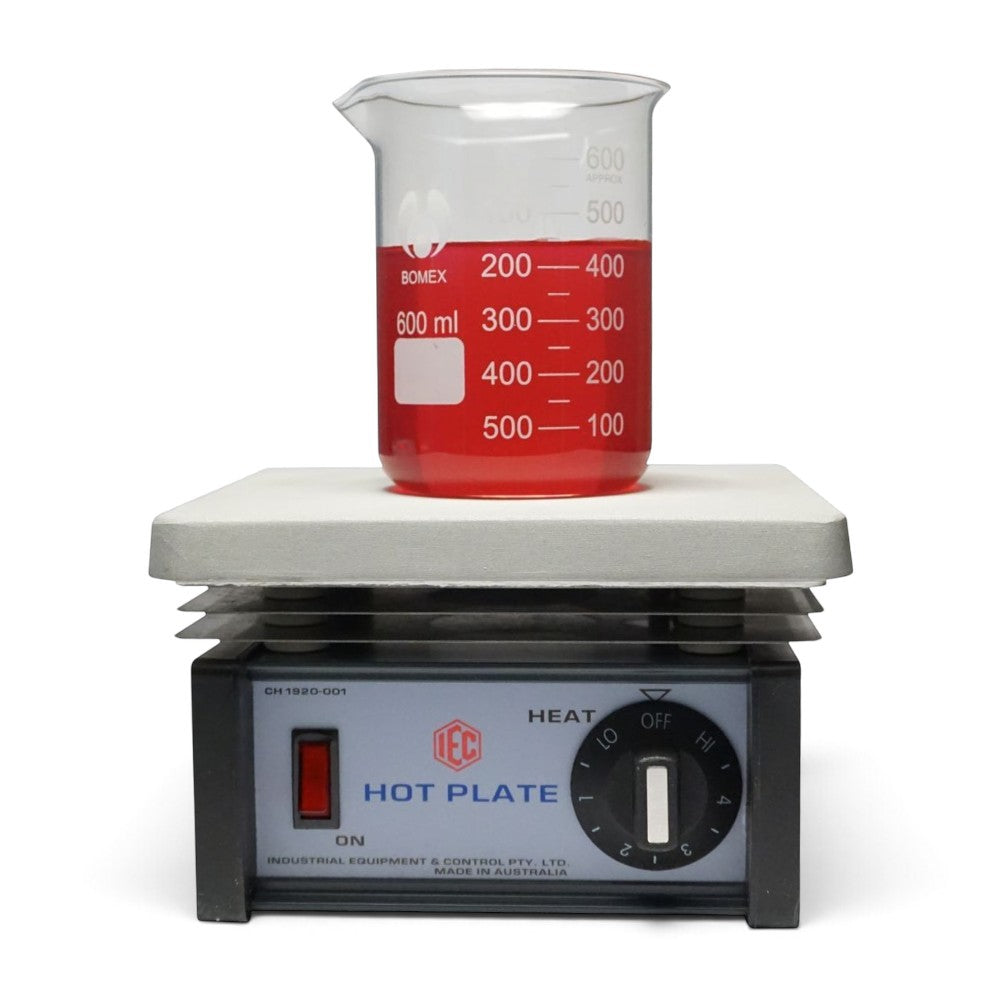

IEC Laboratory Hotplate 600W – Simmerstat Control, 200 × 180mm

The IEC 600W laboratory hotplate with Simmerstat control is a general-purpose electric hotplate designed for heating and boiling applications in school, tertiary and laboratory environments.

The plain 200 × 180 mm high-temperature alloy plate provides an even heating surface, while the Simmerstat energy regulator allows heat output to be adjusted from low to high. At the maximum setting, the heater operates continuously and the plate can reach approximately 420°C under suitable conditions.

Key Features

• IEC model CH1920-001
• 600W laboratory hotplate
• Simmerstat heat control from low to high
• Maximum plate temperature approximately 420°C
• 200 × 180 mm heating plate
• High-temperature alloy plate
• Illuminated mains ON/OFF switch
• Suitable for general laboratory heating and boiling applications
• Designed and manufactured in Australia

Specifications

• Manufacturer: Industrial Equipment & Control (IEC)
• Model: CH1920-001
• Plate size: 200 × 180 mm
• Plate material: High-temperature alloy
• Temperature control: Simmerstat energy regulator
• Maximum plate temperature: Approximately 420°C
• Power: 600 W
• Supply: 240 V AC

Applications

• General laboratory heating
• Heating laboratory glassware and liquids
• Bringing water and other suitable liquids to a simmer or boil
• School science practical work
• Tertiary and laboratory applications

Downloads

IEC Hotplate Instructions
