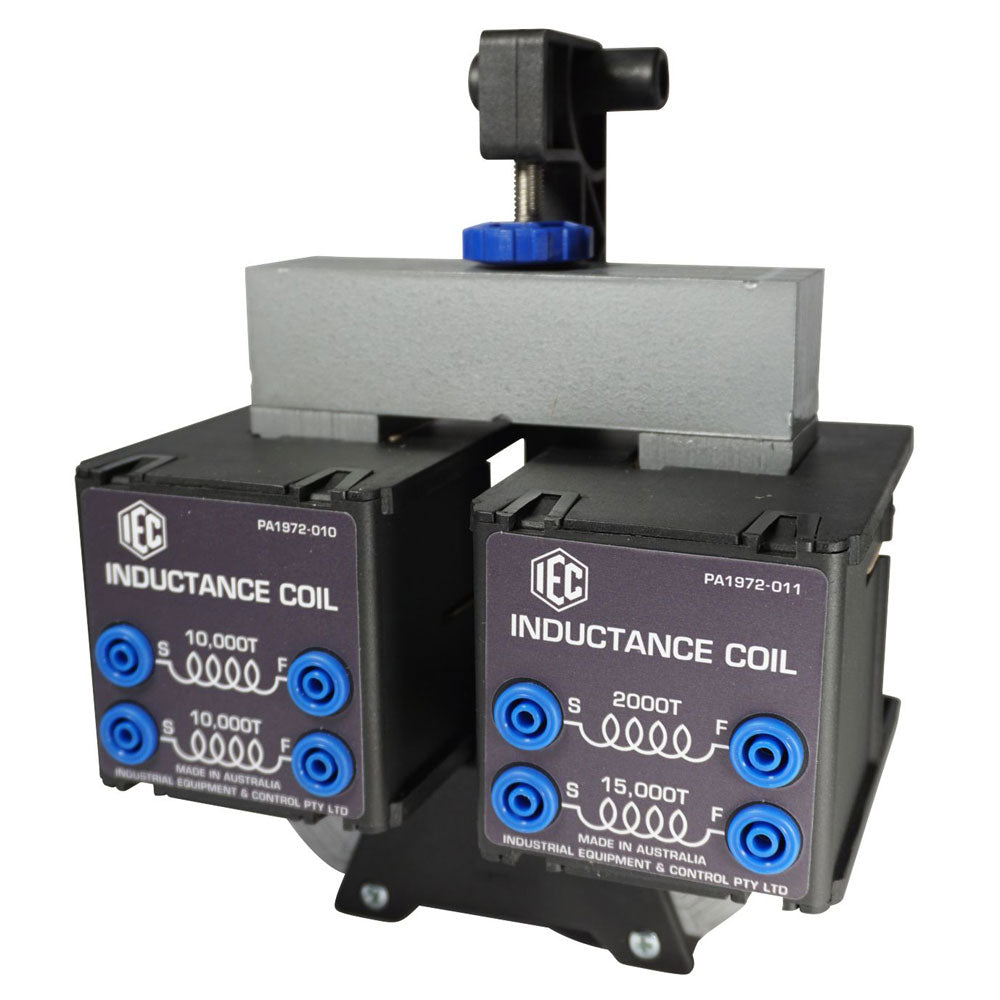

Inductance Apparatus "C" Core Large with Coils

The IEC Inductance apparatus is a special unit designed to provide extremely high inductance. It consists of a large iron core 35x35mm section, with coils of very large number of turns of very fine wire. Inductance of around 10,000 Henrys (with iron core) and 8 Henry (without core fitted) is to be expected. CAUTION: Use should always be supervised. When power is removed from these coils, the sudden collapsing of the magnetic field can generate very high voltages in the coil that will appear at the sockets. If two coils are used, a voltage will be induced in the second coil too. For general classroom use, ask for the EM1973-001 student induction kit.

Instruction Sheet
