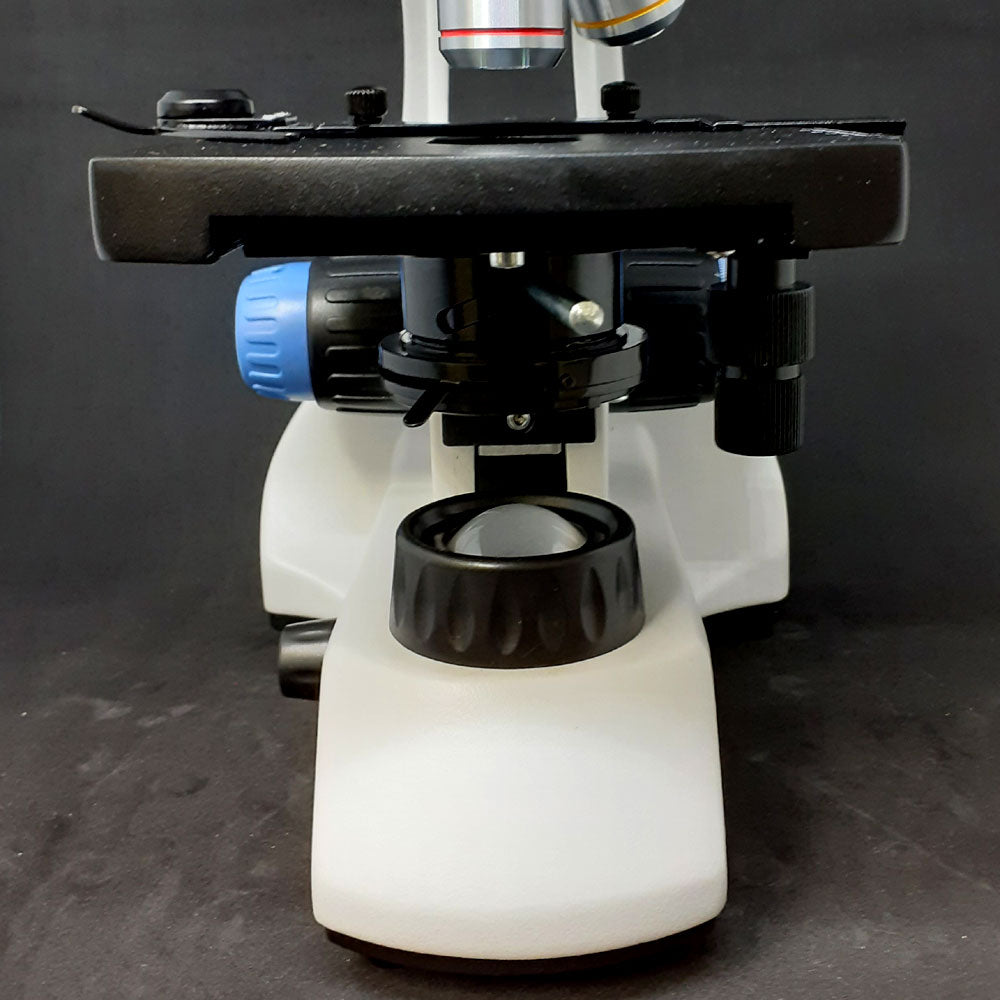

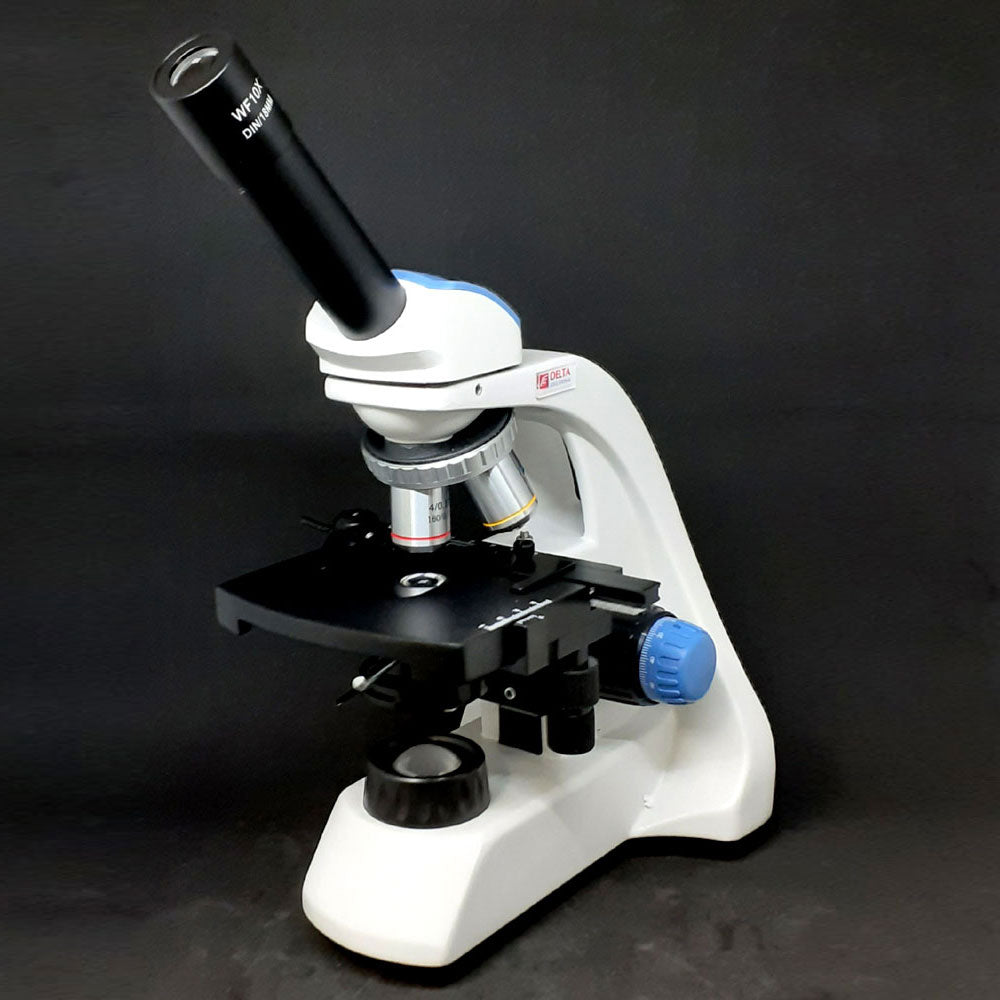

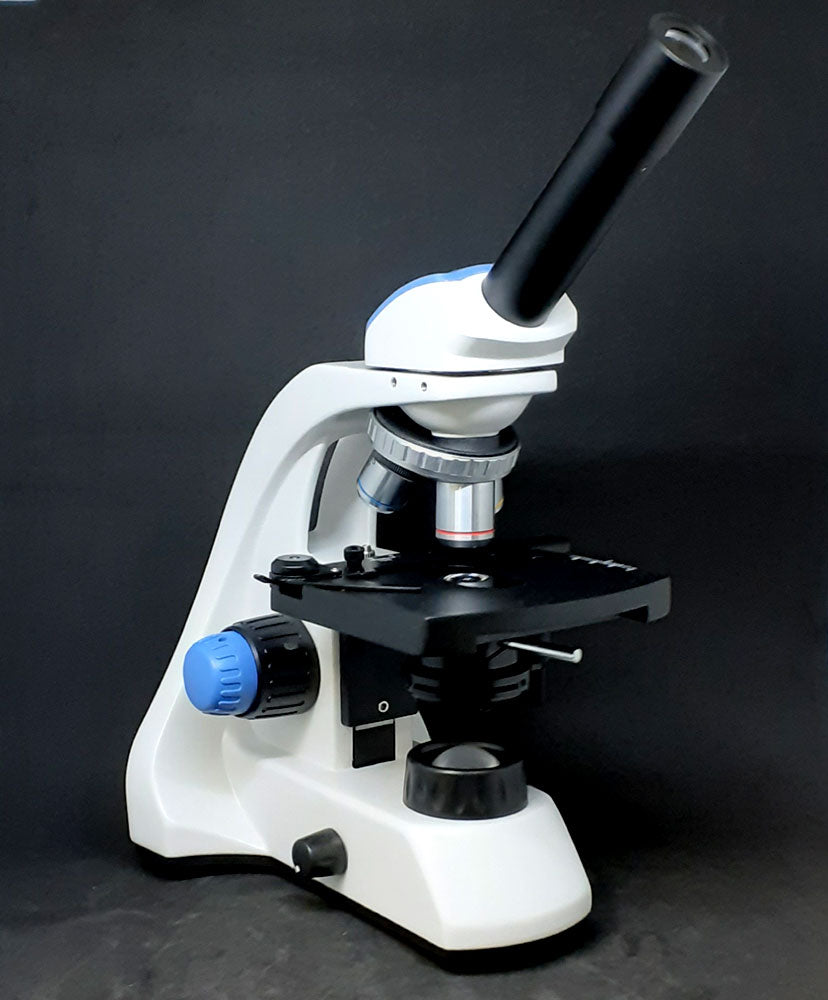

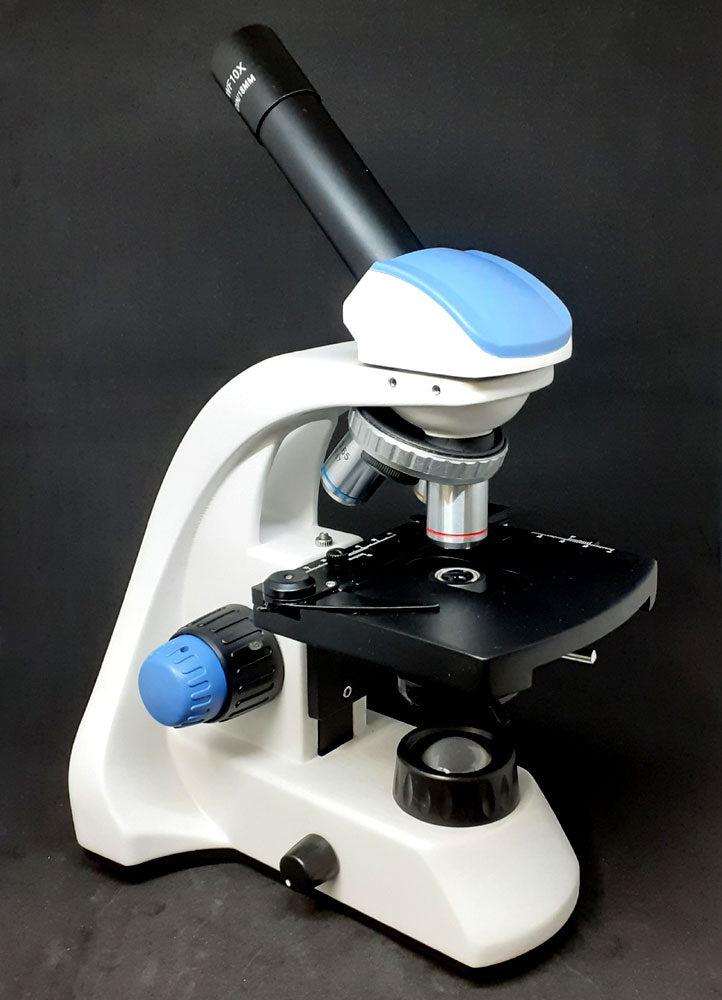

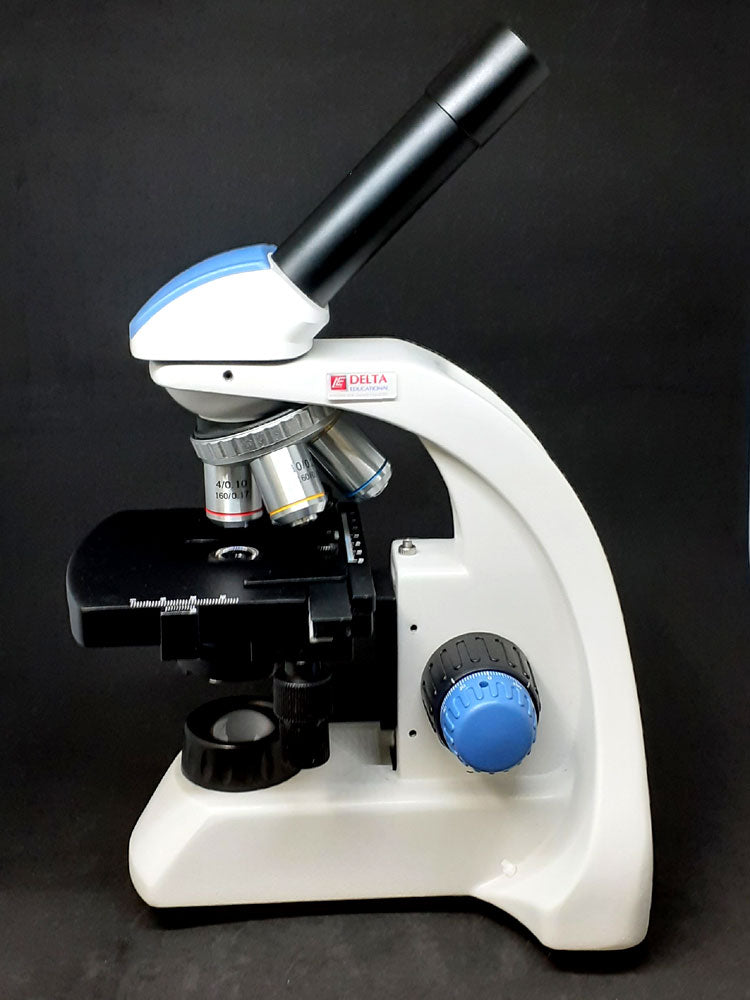

Microscope Monocular Senior – 40x–400x LED Laboratory Microscope

This high quality senior monocular microscope is designed for advanced school biology and NCEA science, with a mechanical stage, Abbe condenser and LED illumination for precise observation at 40x–400x magnification.

Key Features

• Advanced optics: DIN achromat 4x, 10x and 40x spring-loaded objectives with widefield 10x eyepiece
• Fine focus control: coaxial coarse and fine adjustment with safety auto-focus stop
• Mechanical stage: double-layer mechanical stage for accurate slide positioning
• Abbe condenser: spiral condenser N.A. 1.25 with iris diaphragm and filter holder
• Flexible power: inbuilt power supply with USB AC adapter or operation on 3 × AA batteries
• Bright LED illumination: 1 W LED for clear, cool light during extended use
• NZ compliant: NZ electrically certified for school laboratories

Specifications

• Head: monocular, 30° inclined, 360° rotatable
• Eyepiece: widefield 10x/18
• Objectives: DIN achromat 4x/0.10, 10x/0.25, 40x/0.65 spring-loaded (optional 100x oil immersion objective available)
• Magnification: 40x–400x standard (up to 1000x with optional 100x oil objective)
• Stage: double-layer mechanical stage 113 × 110 mm, travel area 60 × 35 mm
• Condenser: Abbe spiral condenser N.A. 1.25 with iris diaphragm and filter holder
• Illumination: 1 W LED
• Power: inbuilt supply with USB AC adapter (240 V, 50–60 Hz) or 3 × AA batteries (not included)
• Accessories included: daylight blue filter, 2 × Allen keys, instruction manual, dust cover
