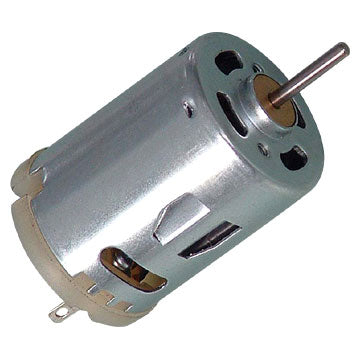

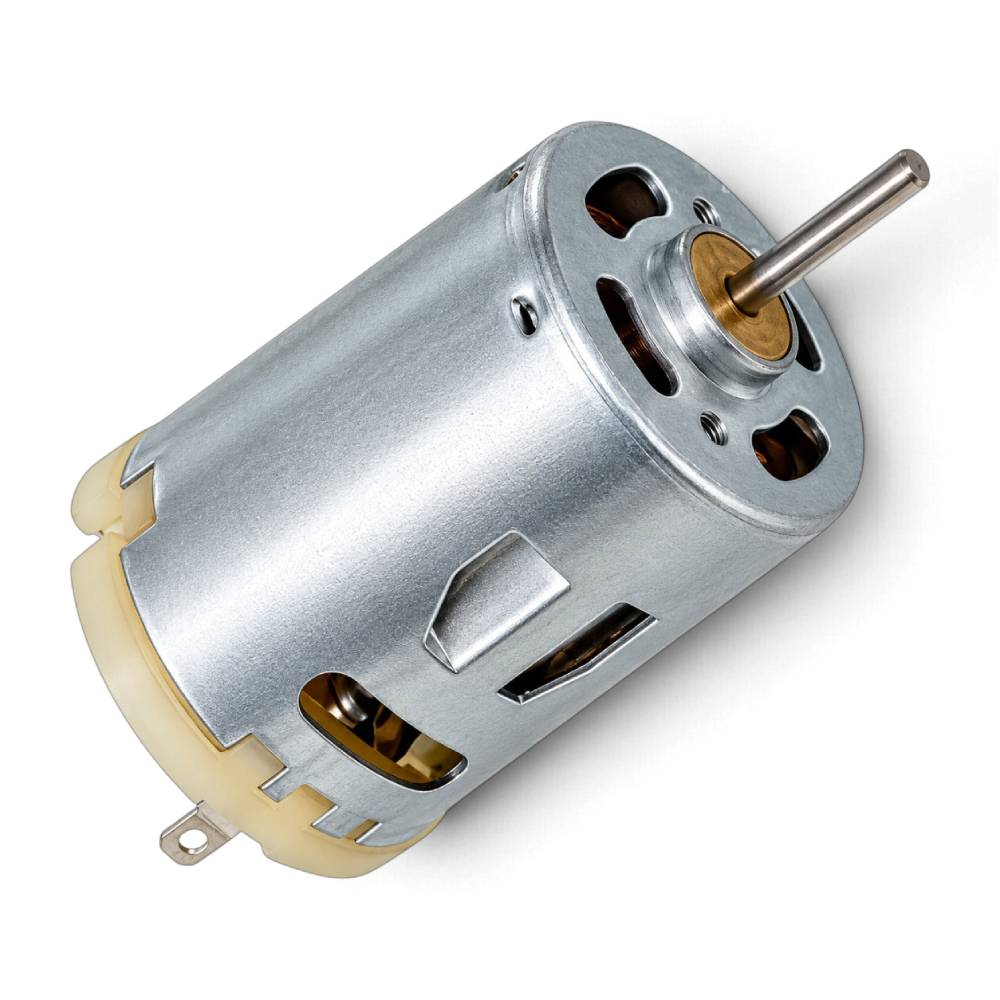

DC Motor 6–12V – 2.3mm Shaft

This larger DC motor is designed for 6–12 V operation and is suitable for electronics, model construction and STEM projects requiring a higher-output motor.

Specifications

• Operating Voltage: 6–12 V DC
• No-Load Speed: 15,700 rpm
• No-Load Current: 0.30 A
• Maximum-Efficiency Speed: 12,510 rpm
• Maximum-Efficiency Torque: 62 g·cm
• Maximum-Efficiency Current: 1.2 A
• Shaft Diameter: 2.3 mm
• Shaft Length: Approx. 12.5 mm
• Body Diameter: Approx. 27.6 mm
• Total Length: Approx. 51 mm
• Mounting Thread: M2.6
• Terminals: Solder tags
