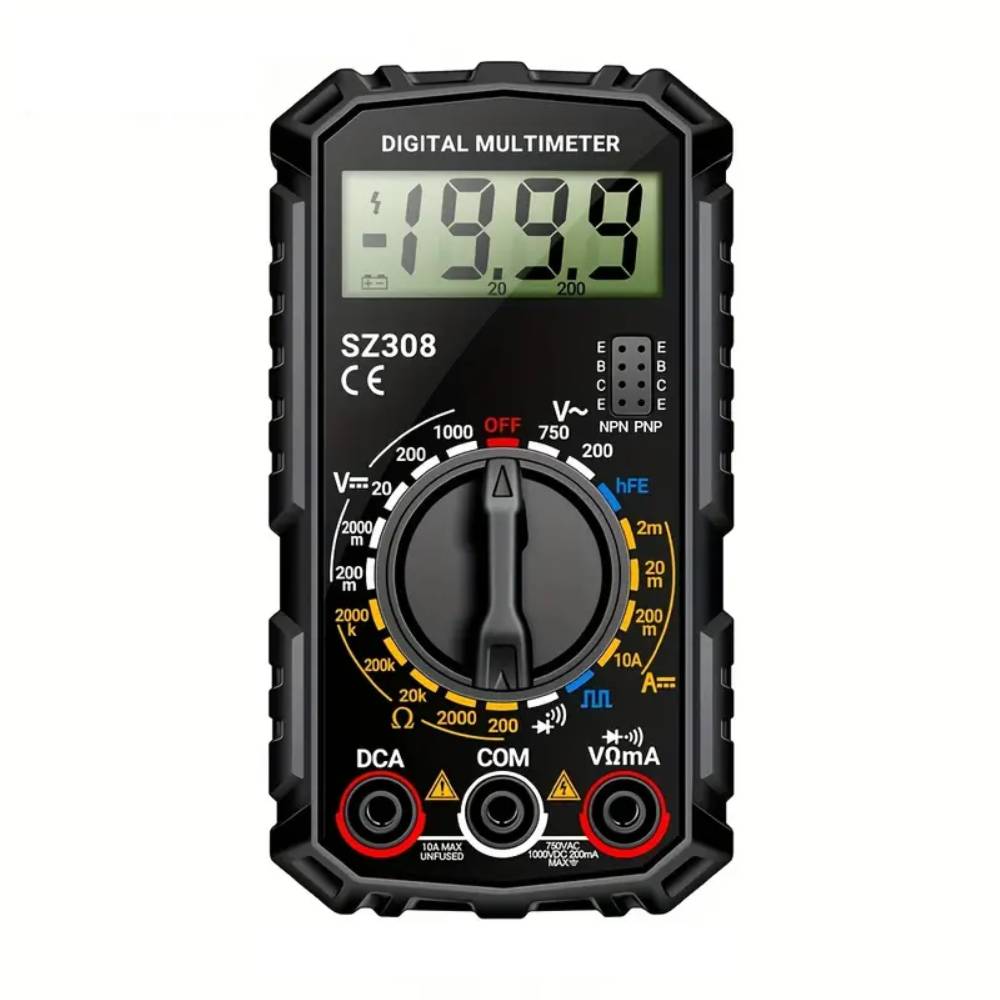

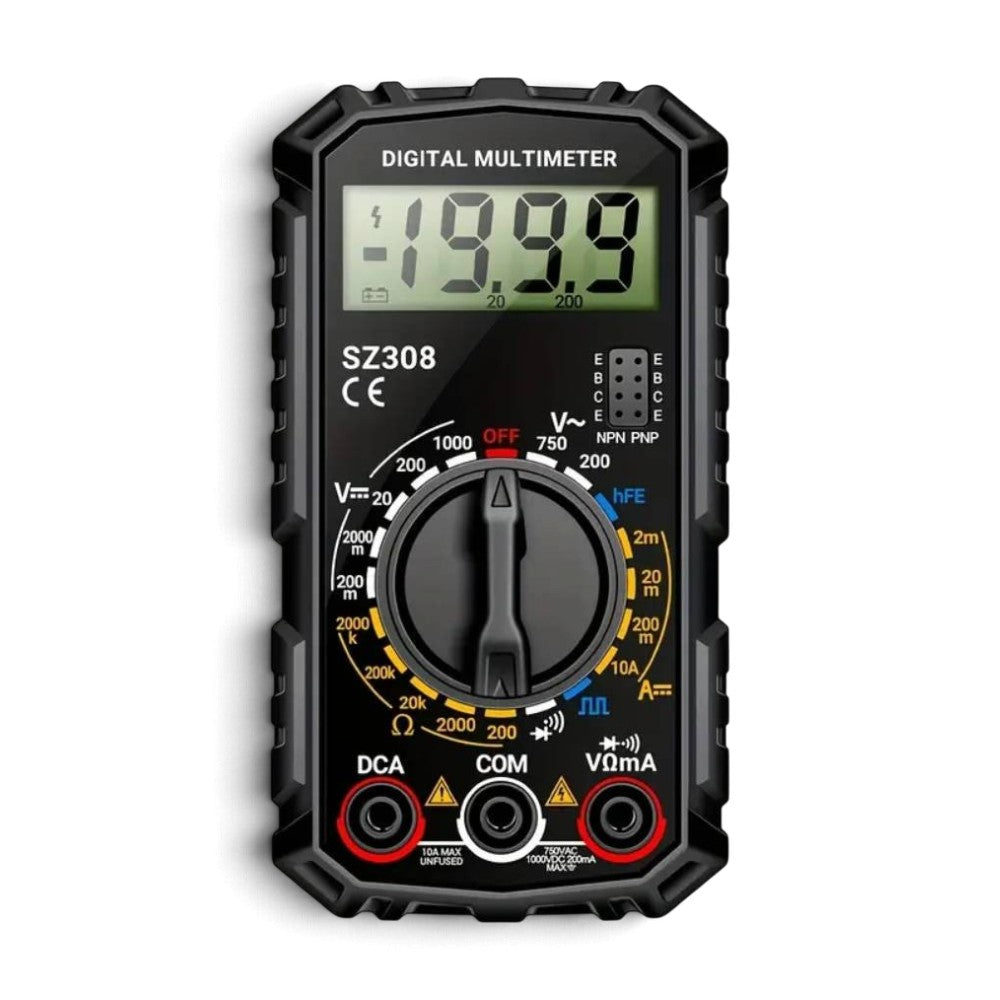

Digital Multimeter

The Digital Multimeter is a compact auto and manual ranging meter for electrical testing, electronics projects and science education.

It measures common electrical parameters including AC/DC voltage, DC current, resistance, capacitance and frequency, with additional continuity, diode and non-contact voltage detection functions.

Key Features

• Auto and manual ranging
• Backlit LCD display with data hold
• NCV non-contact voltage detection
• Continuity buzzer and diode test
• Auto power-off and low-battery indication
• Protective shell with fold-out stand

Specifications

• DC Voltage: 0.8–600 V
• AC Voltage: 0.8–600 V
• DC Current: 0 μA–10 A
• Resistance: 0.1 Ω–60 MΩ
• Capacitance: 1 nF–100 mF
• Frequency: 1 Hz–10 MHz
• Display: 6000 count backlit LCD with bar graph
• Power: 2 × 1.5 V AAA batteries (not included)
