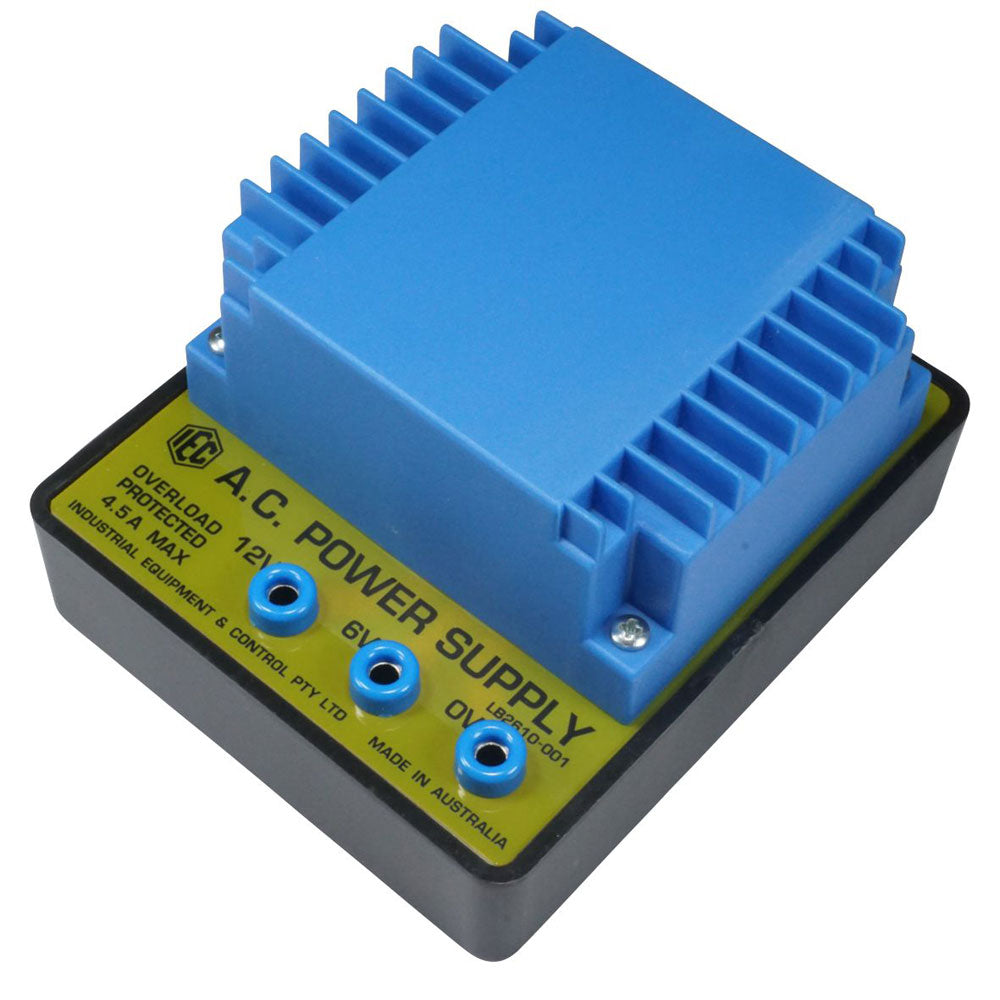

Laboratory AC Transformer – 6V/12V, 4A

This compact IEC laboratory transformer provides fixed 6V AC and 12V AC outputs for low-voltage classroom equipment. Designed for school science laboratories, it is particularly suitable for the 43LB260 IEC Hodson Light Box and Optical Kit, fitting into the dedicated compartment in its foam storage housing.

Key Features

• Two fixed AC output voltages: 6V and 12V
• Maximum total output current: 4A
• Self-resetting thermal overload protection on each output
• Compact design for classroom and laboratory use
• Supplied with a mains power cable
• Suitable for compatible low-voltage lamps and educational apparatus

Specifications

• Input: 220–240V AC, 50/60Hz, approximately 0.5A
• Outputs: 6V AC and 12V AC
• Maximum combined output current: 4A
• Protection: Self-resetting thermal overload on each output
• Dimensions: 110 × 90 × 65mm (L × W × H)
• Weight: Approximately 1kg

Applications

• Powering the IEC Hodson Light Box for optics demonstrations
• Supplying compatible low-voltage microscope lamps
• Providing 6V or 12V AC power for suitable physics equipment

Resources

Manufacturer's Instruction Sheet (PDF)

Safety

For supervised laboratory use. This transformer provides AC output only, not DC. Check the voltage and current requirements of connected equipment before use, and do not exceed the combined 4A output rating.
