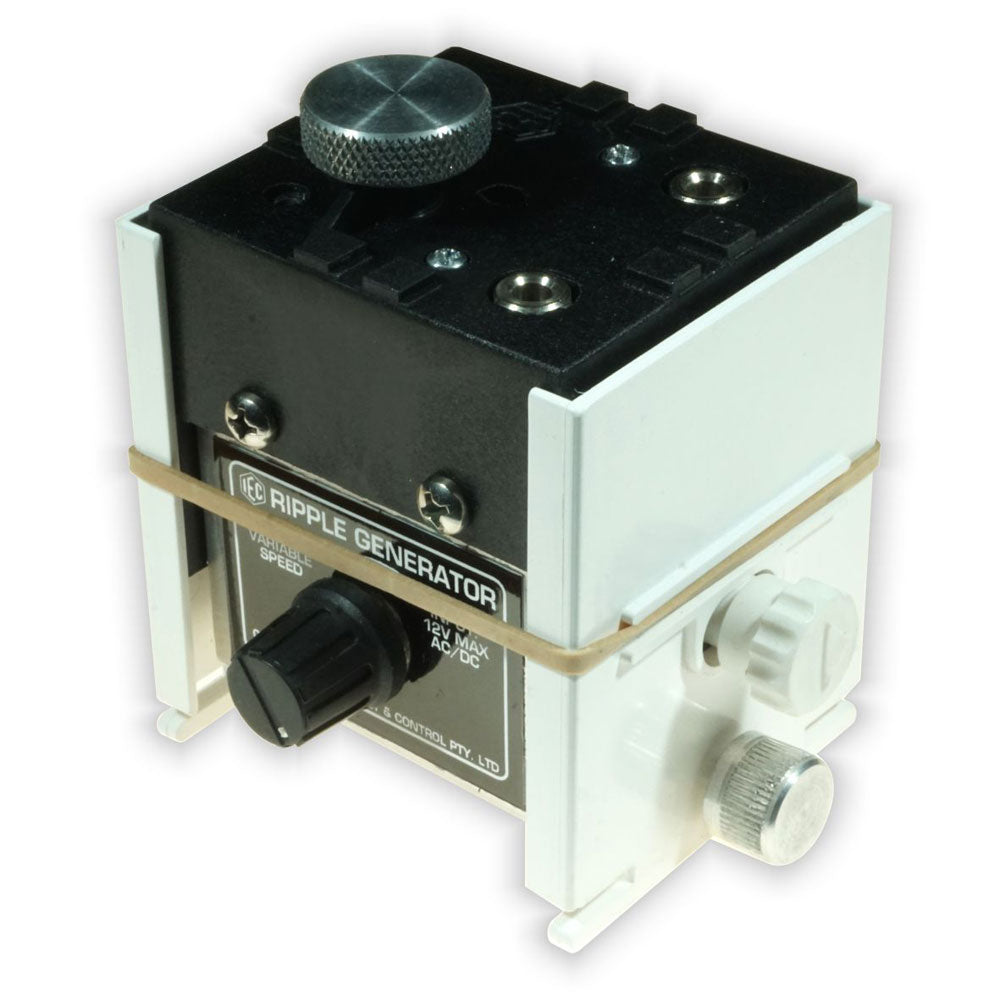

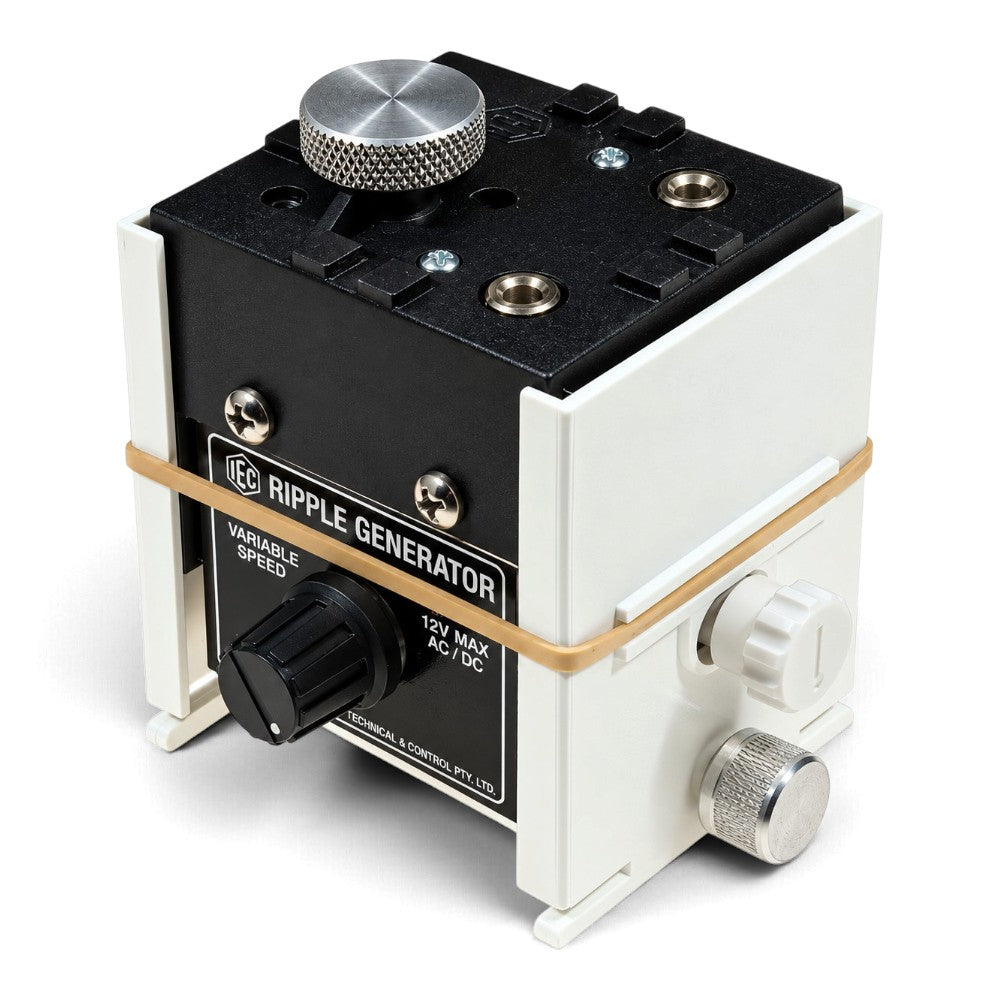

Adjustable Ripple Tank Wave Generator – 0–35Hz, 12V

The Adjustable Ripple Tank Wave Generator is a gear-driven ripple maker designed for demonstrating wave behaviour in school and tertiary physics laboratories. It produces regular disturbances in the water surface of a compatible ripple tank, helping students investigate wave propagation, interference and other wave phenomena.

Indent Product: This item is ordered specially on request and is not normally held in stock. Please contact us for availability and an estimated lead time before ordering.

The generator features adjustable phase and an integral speed control, with an approximate operating frequency range of 0–35Hz. It clamps to the stainless steel support rail above a ripple tank and is designed to carry suitable ripple-making attachments.

Key Features

• Gear-driven ripple generator for wave demonstrations
• Adjustable phase for configuring wave-making motion
• Variable speed, approximately 0–35Hz
• Integrated speed control
• Operates from a suitable AC or DC power source up to 12V
• Clamps to a stainless steel support rail above the ripple tank
• Designed to accept compatible ripple-making attachments

Specifications

• Type: Gear-driven ripple tank wave generator
• Frequency range: Approximately 0–35Hz
• Phase adjustment: Adjustable
• Supply: AC or DC, maximum 12V
• Mounting: Clamp attachment to ripple tank support rail

Educational Applications

• Generating repeatable water waves in a ripple tank
• Investigating wave frequency and propagation
• Exploring interference and wave patterns using suitable attachments

Installation and Operation

A compatible ripple tank, appropriate low-voltage power supply and any required ripple-making attachments should be selected separately. Follow the manufacturer's instructions for setup and use.

Download the manufacturer's instruction sheet (PDF)
