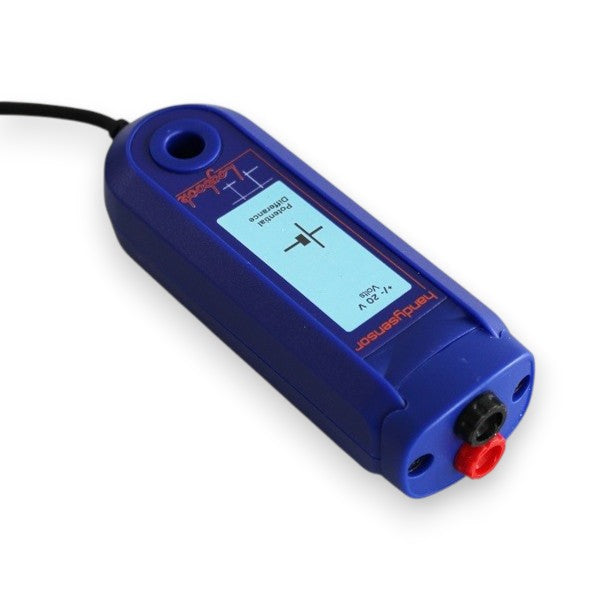

ScienceScope Voltage Sensor ±20V (AC & DC, up to 10 kHz)

The ScienceScope Voltage Sensor is designed to measure both positive and negative voltages in AC and DC circuits with high accuracy. With a measurement range of ±20 V and resolution of 0.05 V, this sensor is ideal for physics and electronics experiments in schools, colleges, and research labs.

Capable of recording at intervals as fast as 50 μs, it can capture rapid voltage fluctuations and waveform changes up to 10 kHz, making it suitable for advanced investigations into electrical signals. It integrates seamlessly with other ScienceScope Voltage and Current Sensors, enabling students to measure power, resistance, and energy across complete circuits.

Key Features

• Measures both AC and DC voltages (up to 10 kHz)
• Range: ±20 V with 0.05 V resolution
• Minimum recommended recording interval: 50 μs
• Works with other ScienceScope Voltage and Current sensors
• Safe for use in circuits with supply voltages less than 24 V

Also Use This Sensor To Measure

• Power
• Energy
• RMS Voltage
• Current (if circuit resistance is known)
• Resistance (when paired with a current sensor)

Typical Applications

• Investigating AC and DC circuits
• Measuring voltage variations in real time
• Exploring Ohm’s Law and circuit resistance
• Power and energy transfer in physics experiments
• Analysing waveforms up to 10 kHz
