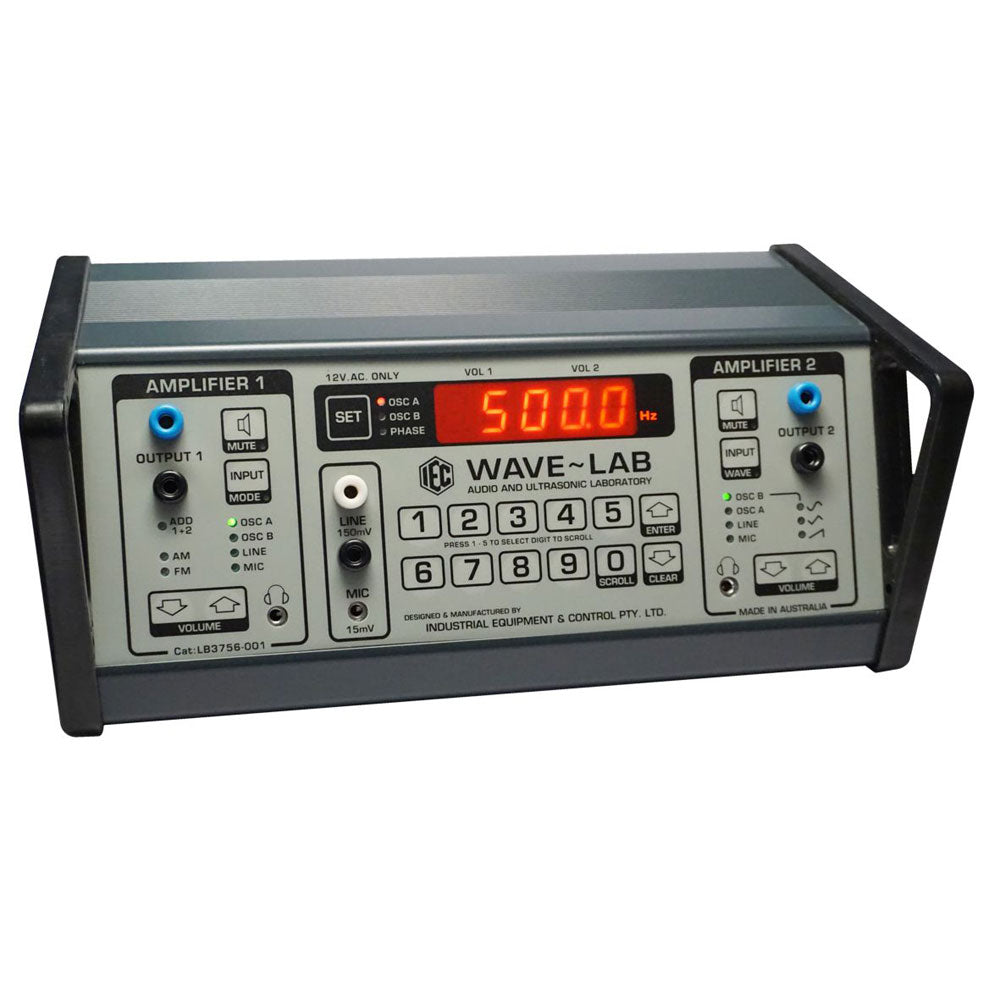

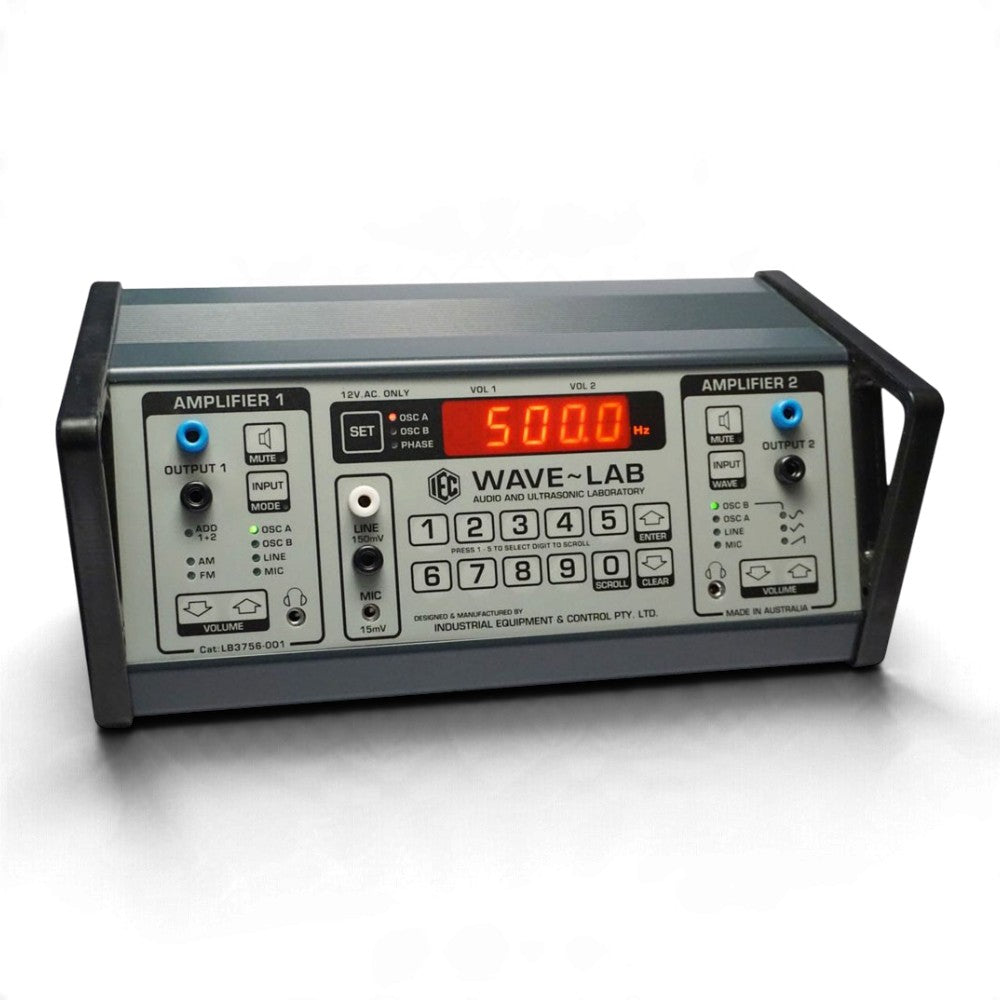

Wave~Lab Dual Digital Signal Generator – 40 kHz, 240 V

The IEC Wave~Lab Dual Digital Signal Generator is a laboratory instrument designed for investigating wave theory, frequency, phase relationships, modulation and sound phenomena.

Its microprocessor-controlled design generates two signals with frequencies up to 40 kHz. The signals can be combined, phase-shifted relative to one another or used in modulation experiments. This makes the instrument useful for advanced secondary school physics and tertiary laboratory teaching.

Key Features

• Dual signal generation with frequencies up to 40 kHz
• Sine, triangular and sawtooth waveforms
• Adjustable phase relationships between signals
• Supports signal addition and modulation experiments
• Digital frequency entry and output power control
• High-power amplifiers for driving suitable speakers or headphones
• Oscilloscope connection for observing waveforms
• External signal input
• Microphone and headphones included

Classroom Applications

• Wave superposition and interference
• Beat frequencies and harmonics
• Phase relationships and modulation
• Sound and acoustics investigations
• Visualising electrical waveforms with an oscilloscope

Specifications

• Brand: IEC
• Model: Wave~Lab
• Type: Dual digital signal generator
• Maximum frequency: 40 kHz
• Waveforms: Sine, triangular and sawtooth
• Power supply: 240 V
• Included accessories: Microphone and headphones

Instruction Sheet

Download manufacturer's instruction sheet.
