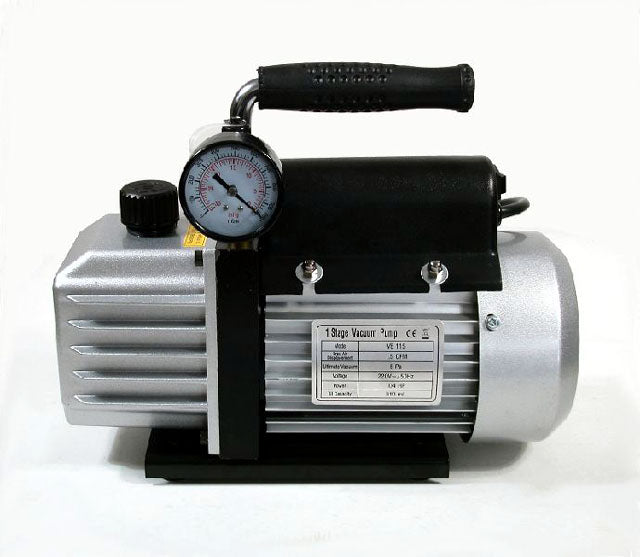

Electric Vacuum Pump – Single Stage, 42L/min

The single-stage electric vacuum pump is an oil-filled rotary vacuum pump for laboratory and educational applications requiring an evacuated system. It features an integrated vacuum gauge, carrying handle and compact benchtop design.

Key Features

• Single-stage, oil-filled vacuum pump
• Free air displacement of 42L/min (1.5 CFM) at 220V / 50Hz
• Specified ultimate vacuum of 5Pa (0.05mbar)
• Integrated vacuum gauge for monitoring pressure
• Carrying handle and compact construction
• Oil sight glass for checking the oil level
• ¼-inch flare intake fitting

Technical Specifications

• Stages: Single-stage
• Manufacturer-rated supply: 220V AC, 50Hz
• NZ electrical compatibility: Supplier-confirmed suitable for operation on a 230V AC, 50Hz mains supply
• Free air displacement: 1.5 CFM / 42L/min
• Ultimate vacuum: 5Pa / 0.05mbar
• Motor power: ¼HP
• Intake fitting: ¼-inch flare
• Oil capacity: 280mL
• Dimensions: 308 × 124 × 228mm
• Net weight: 6.5kg

Maintenance and Accessories

Maintain the correct oil level using the sight glass and follow the manufacturer's instructions for oil changes. The compatible 45VPEO Vacuum Pump Oil is available separately. The instruction manual advises checking the oil level while the pump is running with its inlet capped and avoiding overfilling.

Electrical and Operating Information

This pump is designed for vacuum applications; do not use it for gases, vapours or processes outside the manufacturer's approved operating conditions.
